Product Details:
Payment & Shipping Terms:
|
| Oil: | HFO/ DO/ LUBE OIL/ MFO | Heater: | Steam / Elelctrical |
|---|---|---|---|
| High Light: | oil water separator filter,fuel filter water separator |
||

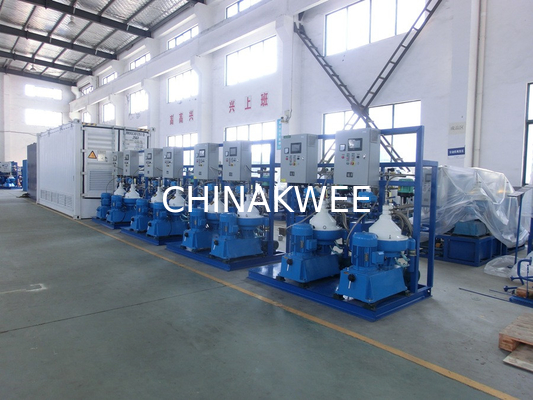

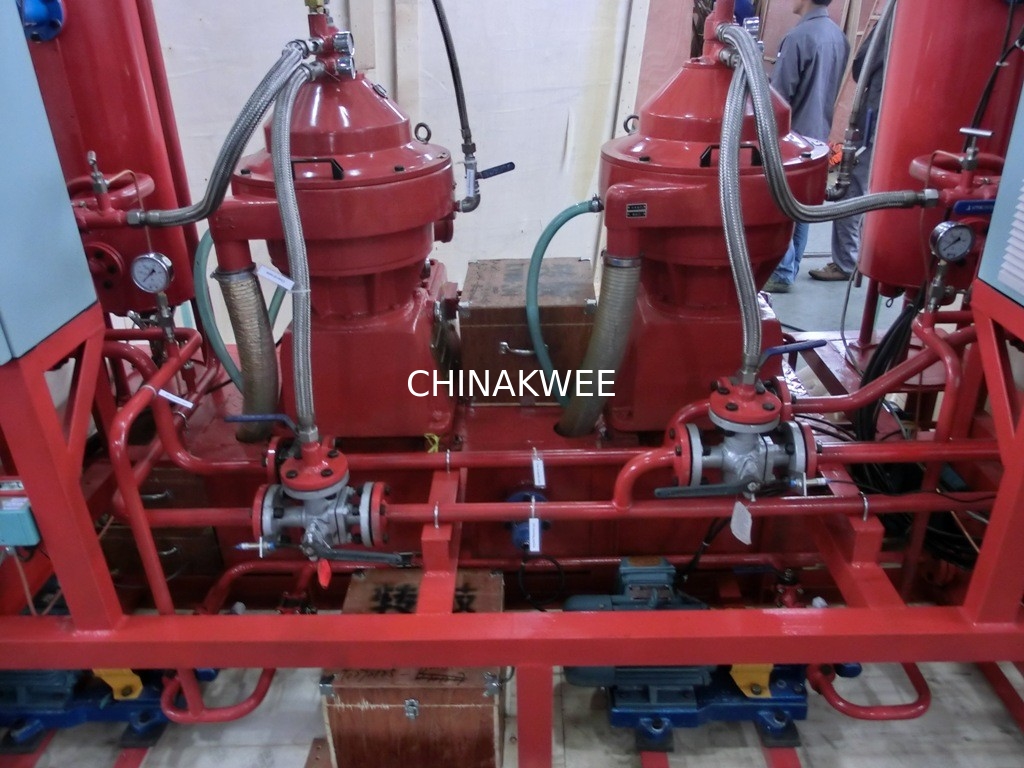

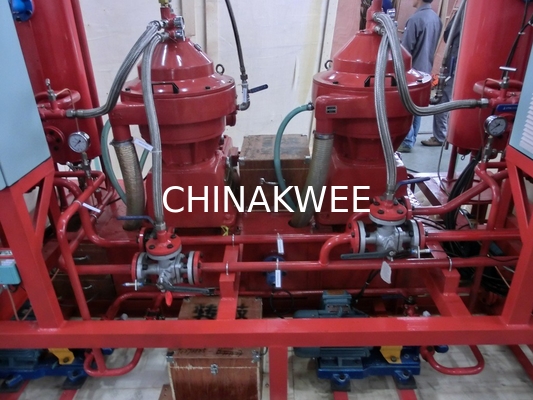

Descrition:
This separator provides even greater separation efficiency, not least due to a major increase in separation area. In addition, it features stronger discs and a more strong drive system, which combine with existing advantages to create the lowest possible lifecycle cost.has set the standard for engine protection and separation efficiency, particularly in working with demanding residual fuel oils.
Applications and advantages:
1. The increased efficiency of the new separator is the result of smart enhancements in the separator disc stack. Increased separation area, disc modifications and other improvements allow up to 20% more flow with retained separation performance.
2. the highest possible reliability and the industry’s lowest lifecycle cost.
3. Modular and flexible supply for the shipyard ,industry, oil refinery plant etc

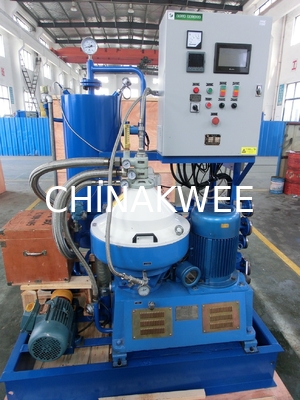

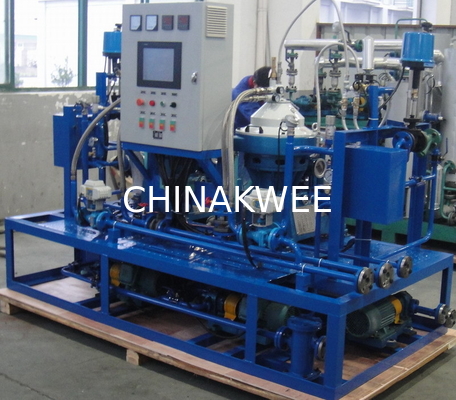

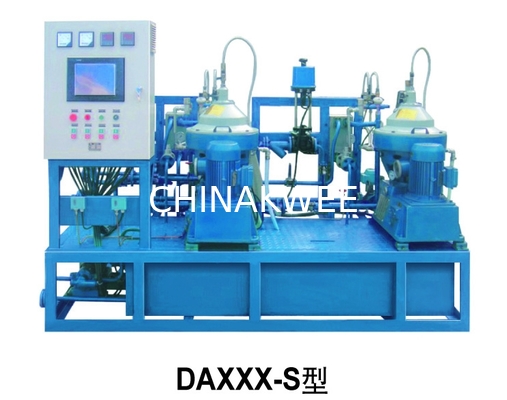

| Separator unit model parameters | |||||||
| Model | SM203- S(O) | SS(A)203-S(O) | SS(A)204-S(O) | SS(A)405-S(O) | SS(A)309-S(O) | DS(A)203-S(O) | |
| Item | |||||||
| Separated volume | Rated value | 2000 | 1500 | 2000 | 3000 | 6000 | 1500 |
| (L/H) | 0# Diesel oil | 2200 | 1600 | 2200 | 3500 | 6500 | 1600 |
| 30# SAE LO. | 1200 | 800 | 1200 | 1800 | 3600 | 800 | |
| 180Cst/50℃HFO | / | 700 | 1100 | 1600 | 3500 | 700 | |
| Power(KW) | Separator | 2.2 | 1.5 | 3 | 5.5 | 11 | 1.5x2 |
| Oil feed pump | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 | 1.5(1.5x2) | |
| E-heating | / | / | / | / | / | / | |
| Others | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | |
| Slag discharge way | Manual Discharge | Auto slge / Auto partial discharge | |||||
| Heating way | Steam 0.45~0.7MPa /Conduction oil 170~210℃ | ||||||
| Control way | Relay | Relay/by PLC auto control | |||||
| Machine weight | 780 | 760 | 785 | 980 | 1830 | 1300 | |
| Outline dimension(mm) | Length | 1150 | 1150 | 1150 | 1300 | 1700 | 2000(2200) |
| Width | 1150 | 1150 | 1150 | 1300/ | 1850 | 1200 | |
| Height | 1700 | 1700 | 1700 | 1780 | 2070 | 1700 | |
| Interface dimension | Fuel oil inlet/ | DN25/ | DN25/ | DN25/ | DN40/ | DN40/ | DN25/ |
| outlet/ | DN25/ | DN20/ | DN25/ | DN32/ | DN40/ | DN25/ | |
| return oil outlet | DN25 | DN20 | DN25 | DN32 | DN40 | DN25 | |
| Medium inlet | DN20(DN25) | DN20(DN25) | DN20(DN25) | DN25 | DN25 | DN20(DN25) | |
| Medium outlet | DN20(DN25) | DN20(DN25) | DN20(DN25) | DN20(DN25) | DN25 | DN20(DN25) | |
| Control water inlet | G1/2” | G1/2” | G1/2” | G1/2” | G1/2” | G1/2” | |
| Incoming cable | CEFR4x2.5 | CEFR4x2.5 | CEFR4x2.5 | CEFR4x4 | CEFR4x6 | CEFR4x4 | |
| Alarm output cable | CEFR2x0.75 or CEFR10x0.75 | ||||||
| Power supply | 3φ-380V/50Hz or 3φ-440V/60Hz | ||||||
| Separator unit model parameters | |||||||
| Model | DS(A)204-S(O) | DS(A)405-S(O) | SS(A)203-E | SS(A)204-E | DS(A)203-E | DS(A)204-E | |
| Item | |||||||
| Separated volume | Rated value | 2000 | 3000 | 1500 | 2000 | 1500 | 2000 |
| (L/H) | 0# Diesel oil | 2200 | 3500 | 1600 | 2200 | 1600 | 2200 |
| 30# SAE LO. | 1200 | 1800 | 800 | 1200 | 800 | 1200 | |
| 180Cst/50℃HFO | 1100 | 1600 | 700 | 1100 | 700 | 1100 | |
| Power(KW) | Separator | 3 x2 | 5.5 x2 | 1.5 | 3 | 1.5x2 | 3 x2 |
| Oil feed pump | 1.5(1.5x2) | 1.5(1.5x2) | 1.5 | 1.5 | 1.5(1.5x2) | 1.5(1.5x2) | |
| E-heating | / | / | 3x3 | 6x3 | 5x3(5x3x2) | 8x3(8x3x2) | |
| Others | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | |
| Slag discharge way | Auto slge / Auto partial discharge | ||||||
| Heating way | Steam 0.45~0.7MPa /Conduction oil 170~210℃ | By electricity | |||||
| Control way | Relay/by PLC auto control | ||||||
| Machine weight | 1390 | 1715 | 800 | 835 | 1550 | 1620 | |
| Outline dimension(mm) | Length | 2000(2200) | 2200 | 1150 | 1150 | 2200 | 2200 |
| Width | 1200 | 1250 | 1150 | 1150 | 1200 | 1200 | |
| Height | 1700 | 1780 | 1700 | 1700 | 1700 | 1700 | |
| Interface dimension | Fuel oil inlet/ | DN32/ | DN40/ | DN25/ | DN25/ | DN25/ | DN32/ |
| outlet/ | DN32/ | DN40/ | DN20/ | DN25/ | DN25/ | DN32/ DN32 | |
| return oil outlet | DN32 | DN40 | DN20 | DN25 | DN25 | ||
| Medium inlet | DN20(DN25) | DN25 | / | / | / | / | |
| Medium outlet | DN20(DN25) | DN20(DN25) | / | / | / | / | |
| Control water inlet | G1/2” | G1/2” | G1/2” | G1/2” | G1/2” | G1/2” | |
| Incoming cable | CEFR4x4 | CEFR4x6 | CEFR4x6 | CEFR4x10 | CEFR4x16 | CEFR4x25 | |
| Alarm output cable | CEFR2x0.75 or CEFR10x0.76 | ||||||
| Power supply | 3φ-380V/50Hz or 3φ-440V/61Hz | ||||||
| Oil Separator unit Parameter Table | ||||||
| Model | KYDR203CD-21 | KYDB203DD-21 | KYDB204DD-21 | KYDB405SD-21 | KYDB309SD-21 | KYDB513SD-21 |
| Item | ||||||
|
Rated Separater Volume |
2000 | 1500 | 2000 | 3000 | 6000 | 10000 |
| Drum Rotating Speed (r/min) |
9000 | 9400 | 9300 | 9100 | 5800 | 6200 |
| Separating Factors(g) | 12450 | 9037 | 9910 | 12034 | 7050 | 9131 |
| Engine Power(Kw) | 2.2 | 1.5 | 3 | 5.5 | 11 | 15 |
| Drive Way | High-speed Strap | |||||
| Start/Stop time |
3~5min/10~15min | 5~8 min/15~20min | ||||
| Sludge Discharge Way |
Manual Discharge | Auto Valve-circled Partial Discharge | ||||
| Dirty Oil Input Way | Independent External Pump | |||||
|
Dirty Oil Input Pressure |
~ 0.1 | |||||
| Purified Oil Output Way | Concentric Pump | |||||
| Purified Oil output Pressure (MPa) |
0.2-0.3 | |||||
| Controlled-water Pre./Tem.(MPa)/(℃) |
0.02~0.7 (No requirement) |
0.2-0.3 / 85-95 | ||||
| Net Weight (Kg) |
268 | 250 | 270 | 400 | 900 | 1100 |
|
Outline Dimension |
720x450x850 | 710x420x840 | 720x450x850 | 840x510x930 | 1220x800x1300 | 1300x900x1450 |
| Power Supply (V/Hz) |
3ф-380V/50Hz, 3ф-440V/60Hz | |||||
