2000kw / 2500kw / 3000kw Fuel oil and Gas Engine Generator Set

China 2000kw / 2500kw / 3000kw  Fuel oil and Gas Engine Generator Set supplier
2000kw / 2500kw / 3000kw  Fuel oil and Gas Engine Generator Set supplier 2000kw / 2500kw / 3000kw  Fuel oil and Gas Engine Generator Set supplier 2000kw / 2500kw / 3000kw  Fuel oil and Gas Engine Generator Set supplier 2000kw / 2500kw / 3000kw  Fuel oil and Gas Engine Generator Set supplier 2000kw / 2500kw / 3000kw  Fuel oil and Gas Engine Generator Set supplier

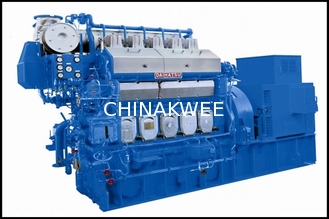

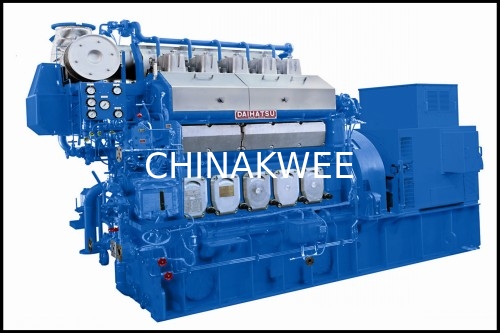

Large Image :  2000kw / 2500kw / 3000kw Fuel oil and Gas Engine Generator Set

Product Details:

Place of Origin: WUXI ,CHINA
Brand Name: KANGWEI
Certification: CCS,BV,GL
Model Number: According to the design and technical demand
Fuel: diesel oil/light fuel oil/heavy fuel oil/gas

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiated
Packaging Details: CONTAINER ,WOODEN CASE
Delivery Time: Negotiate
Payment Terms: T/T, L/C
Supply Ability: 40SETS EACH MONTH
Contact Now
Detailed Product Description
High Light:

electric generator set

,

diesel power generator set

2000kw / 2500kw / 3000kw / 540rpm Diesel engine Generator set





1.Applications:



 industrial, ships, power plant , hosipital, remote country



2.Competitive Advantage:



Successfully build technical cooperation with MAN Diesel & Turbo company;

Design and manufacture the lower , middle , highest diesel engine according to the market demand

Good after-sales service team

Quality recognized by CCS , GL, ABS, BV classification society in the world





Main Specification of 1000-2000kW Diesel Generating Sets (1)



Generating Set

Model

1000GF9

1000GF10

1000GF11

1250GF1A

1250GF2A

1250GF3A

Rated power

kW(kVA)

1000(1250)

1250(1562.5)

Rated voltage

kV

0.4

6.3

10.5

6.3

0.4

10.5

Rated current

A

1804

114.6

68.7

143.2

2255

85.9

Rated frequency

Hz

50/60

Rated speed

rpm

500/514

Power factor



0.8(lagging)

Phase & connection



3-phase

4-wire

3-phase

6-wire

3-phase

4-wire

3-phase

6-wire

Overall dimensions

L×B×H

mm

7264×2300×3465

7394×2300×3465

Net weight

t

32.5

34

Diesel Engine

Model



G6300ZD

G6300ZD21

Type



Vertical in line, 4-stroke, turbocharged, intercool diesel engine for generating set

Bore

mm

300

Stroke

mm

380

Total displacement

L

161

Rated power

kW(Ps)

1125(1530)

1470(2000)

1-hour power

kW(Ps)

1237.5(1683)

1617(2200)

Rated speed

rpm

500/514

600

Minimum no-load stable speed

rpm

200

200

Specific fuel consumption

g/kWh(g/Psh)

204(150)

208(153)

Specific lubricating-oil consumption

g/kWh(g/Psh)

2.18(1.60)

2.18(1.60)

Mean piston speed

m/s

6.33

7.6

Compression ratio



13

13

Mean effective pressure

MPa(kgf/cm2)

1.68(17.1)

1.83(18.6)

Maximum explosion pressure

MPa(kgf/cm2)

11.77(120)

13.73(140)

Opening pressure of cylinder safety valve

MPa(kgf/cm2)

14.21(145)

15.19(155)

Idle compression pressure

MPa(kgf/cm2)

3.14-3.53(32-36)

3.14-3.53(32-36)

Turbocharger pressure

MPa(kgf/cm2)

0.23-0.255(2.35-2.6)

0.25-0.28(2.5-2.85)

Exhaust temperature of cylinder

≤450

Exhaust temperature before turbine

≤600

Rotation direction



Counterclockwise (viewing from flywheel end to free end)

Firing order



1-4-2-6-3-5

Starting air pressure

MPa(kgf/cm2)

1.18-2.94(12-30)

Overall dimensions

L×B×H mm

4731×1863×2900

7394×2300×3465

Height of hoisting piston

mm

2425  (above crankshaft)

Net weight

t

17.5

Generator

Model



TFW500, TFW900

TFW900

Rated power

kW

1000

1250

Rated voltage

kV

0.4

6.3

10.5

6.3

0.4

10.5

Rated current

A

1804

114.6

68.7

143.2

2255

85.9

Rated frequency

Hz

50/60

Rated speed

rpm

500/514

Pole number



12/14





Main Specification of 1000-2000kW Diesel Generating Sets (2)



Generating Set

Model







1250GF1

1250GF2

1250GF3

Rated power

kW(kVA)



1250(1562.5)

Rated voltage

kV







6.3

0.4

10.5

Rated current

A







143.2

2255

85.9

Rated frequency

Hz

50/60

Rated speed

rpm

500/514

Power factor



0.8(lagging)

Phase & connection





3-phase

6-wire

3-phase

4-wire

3-phase

6-wire

Overall dimensions

L×B×H

mm



8904×2200×3286

 9004×2360×3286

Net weight

t



38

39.7

Diesel Engine

Model





G8300ZD

Type



Vertical in line, 4-stroke, turbocharged, intercool diesel engine for generating set

Bore

mm

300

Stroke

mm

380

Total displacement

L



215

Rated power

kW(Ps)



1500(2040)

1-hour power

kW(Ps)



1650(2244)

Rated speed

rpm

500/514

Minimum no-load stable speed

rpm

200

Specific fuel consumption

g/kWh(g/Psh)

204(150)

Specific lubricating-oil consumption

g/kWh(g/Psh)

2.18(1.60)

Mean piston speed

m/s

6.33

Compression ratio



13

Mean effective pressure

MPa(kgf/cm2)

1.68(17.1)

Maximum explosion pressure

MPa(kgf/cm2)

11.77(120)

Opening pressure of cylinder safety valve

MPa(kgf/cm2)

14.21(145)

Idle compression pressure

MPa(kgf/cm2)

3.14-3.53(32-36)

Turbocharger pressure

MPa(kgf/cm2)

0.23-0.255(2.35-2.6)

Exhaust temperature of cylinder

≤450

Exhaust temperature before turbine

≤600

Rotation direction



Counterclockwise (viewing from flywheel end to free end)

Firing order





1-6-2-4-8-3-7-5

Starting air pressure

MPa(kgf/cm2)

1.18-2.94(12-30)

Overall dimensions

L×B×H mm



5768×1670×2917

Height of hoisting piston

mm

2425  (above crankshaft)

Net weight

t



21

Generator

Model





TFW900

Rated power

kW



1250

Rated voltage

kV







6.3

0.4

10.5

Rated current

A







143.2

2255

85.9

Rated frequency

Hz

50/60

Rated speed

rpm

500/514

Pole number



12/14







Main Specification of 1000-1600kW Diesel Generating Sets (3)



Generating Set

Model

1600GF1

1600GF2

1600GF3

2000GF1

2000GF2

2000GF3

Rated power

kW(kVA)

1600(2000)

2000(2500)

Rated voltage

kV

6.3

0.4

10.5

6.3

0.4

10.5

Rated current

A

183

2886.7

110

229

3608.6

137.5

Rated frequency

Hz

50/60

Rated speed

rpm

500/514

600

Power factor



0.8(lagging)

Phase & connection



3-phase

6-wire

3-phase

4-wire

3-phase

6-wire

3-phase

4-wire

3-phase

6-wire

Overall dimensions

L×B×H

mm

9124×2360×3286

9263×2565×3286

Net weight

t

40

45

Diesel Engine

Model



G8300ZD13

G8300ZD21

Type



Vertical in line, 4-stroke, turbocharged, intercool diesel engine for generating set

Bore

mm

300

Stroke

mm

380

Total displacement

L

215

Rated power

kW(Ps)

1765(2400)

2206(3000)

1-hour power

kW(Ps)

1942(2640)

2426(3300)

Rated speed

rpm

500/514

600

Minimum no-load stable speed

rpm

200

200

Specific fuel consumption

g/kWh(g/Psh)

204(150)

208(153)

Specific lubricating-oil consumption

g/kWh(g/Psh)

2.18(1.60)

2.18(1.60)

Mean piston speed

m/s

6.33

7.6

Compression ratio



13

13

Mean effective pressure

MPa(kgf/cm2)

2(20.4)

2.05(20.9)

Maximum explosion pressure

MPa(kgf/cm2)

12.75(130)

13.73(140)

Opening pressure of cylinder safety valve

MPa(kgf/cm2)

15.19(155)

15.19(155)

Idle compression pressure

MPa(kgf/cm2)

3.14-3.53(32-36)

Turbocharger pressure

MPa(kgf/cm2)

0.23-0.255(2.35-2.6)

Exhaust temperature of cylinder

≤450

Exhaust temperature before turbine

≤600

Rotation direction



Counterclockwise (viewing from flywheel end to free end)

Firing order



1-6-2-4-8-3-7-5

Starting air pressure

MPa(kgf/cm2)

1.18-2.94(12-30)

Overall dimensions

L×B×H mm

5768×1670×2917

5818×1670×2917

Height of hoisting piston

mm

2425  (above crankshaft)

Net weight

t

21

24

Generator

Model



TFW900

Rated power

kW

1600

2000

Rated voltage

kV

6.3

0.4

10.5

6.3

0.4

10.5

Rated current

A

183

2886.7

110

229

3608.6

137.5

Rated frequency

Hz

50/60

Rated speed

rpm

500/514

600

Pole number



12/14

10/12





Technical specifications of 2500-3000kW diesel generating sets (1)





Model

2500GF1

2500GF3

3000GF1

3000GF3

Gen-set

Rated output

kW(kVA)

2500 (3125)

3000 (3750)

Rated voltage

kV

6.3

10.5

6.3

10.5

Rated current

A

286.4

171.8

344

206

Rated frequency

Hz

50/60

Rated speed

rpm

500/514

Power factor



0.8 (lagging)

Phases and connection



Three phases, six wires

Overall dimensions

l×w×h, mm

10355×2768×3420

10410×2768×3420

Net weight

t

60

61.5

diesel

Model



G16V300ZD

G16V300ZD1

Type



V model, 4 stroke, turbocharged, intercooled, for generating application

Intersection angle



45°

Cylinder bore

mm

300

Piston stroke

mm

380

Total displacement

L

430

Rated output

kW

2750

3300

1h power

kW

3025

3630

Rated speed

rpm

500/514

Min. steady speed at zero load

rpm

200

Fuel consumption

g/kWh(g/Psh)

204(150)

Oil consumption

g/kWh(g/Psh)

≤2.18 (1.6)

Mean piston speed

m/s

6.33

Compression ratio



13

Mean effective pressure

MPa(kgf/cm2)

1.54(15.7)

1.85 (18.8)

Max. explosion pressure

MPa(kgf/cm2)

12.75 (130)

Boosting pressure

MPa(kgf/cm2)

0.255-0.275 (2.6-2.8)

Exhaust temperature

≤450℃

Gas temperature before turbine

≤600℃

Rotation direction



Counter-clockwise

(viewing from flywheel end to free end)

Ignition order



Right side: 1-6-2-4-8-3-7-5

Left side: 8-3-7-5-1-6-2-4

Air pressure for start

MPa(kgf/cm2)

1.18-2.94 (12-30)

Overall dimensions

l×w×h, mm

7071×2624×3110

Height of space for lifting the cylinder liner

mm

2425 above the crankshaft

Net weight

t

42

Generator

Model



TFW950

Rated output

kW

2500

3150

Rated voltage

kV

6.3

10.5

6.3

10.5

Rated current

A

286.4

171.8

344

206

Rated frequency

Hz

50/60

Rated speed

rpm

500/514

Number of poles



12/14





Technical specifications of 2500-3000kW diesel generating sets (2)



Gen-set

Model

2500GF1A

2500GF3A

Rated output

2500 (3125)



Rated voltage

6.3

10.5

10.5

Rated current

286.4

171.8

343

Rated frequency

Hz

50/60

Rated speed

rpm

600

Power factor



0.8(lagging)

Phases and connection



Three phases, six wires

Overall dimensions

l×w×h, mm

10355×2768×3420

Net weight

t

55

diesel

Model



X8320ZD

Type



L model, 4 stroke, turbocharged, intercooled, for generating application

Intersection angle





Cylinder bore

mm

320

Piston stroke

mm

380

Total displacement

L

245

Rated output

kW

2794

1h power

kW

3073

Rated speed

rpm

600

Min. steady speed at zero load

rpm

232

Fuel consumption

g/kWh

196

Oil consumption

g/kWh

1.36

Mean piston speed

m/s

7.35

Compression ratio



12.5

Mean effective pressure

MPa(kgf/cm2)

2.37(23.25)

Max. explosion pressure

MPa(kgf/cm2)

15.5(152)

Boosting pressure

MPa(kgf/cm2)

0.33-0.34(3.24-3.34)

Exhaust temperature

≤450℃

Gas temperature before turbine

≤600℃

Rotation direction



Counter-clockwise

(viewing from flywheel end to free end)

Ignition order



1-6-2-4-8-3-7-5

Air pressure for start

MPa(kgf/cm2)

1.18-2.94(12-30)

Overall dimensions

l×w×h, mm



Height of space for lifting the cylinder liner

mm

2425 above the crankshaft

Net weight

t

35

Generator

Model



TFW950

Rated output

kW

2500

Rated voltage

kV

6.3

10.5

Rated current

A

286.4

171.8

Rated frequency

Hz

50/60

Rated speed

rpm

600

Number of poles



10/12



Technical specifications of 3600-4000kW diesel generating sets





Model

3600GF1

3600GF3

4000GF1

4000GF3

Gen-set

Rated output

kW(kVA)

3600 (4500)

4000 (5000)

Rated voltage

kV

6.3

10.5

6.3

10.5

Rated current

A

412.4

247.4

458.2

275

Rated frequency

Hz

50/60

Rated speed

rpm

600

Power factor



0.8 (lagging)

Phases and connection



Three phases, six wires

Overall dimensions

l×w×h, mm

10957×2768×3420

10957×2768×3420

Net weight

t

65

65

diesel

Model



G16V300ZD4

G16V300ZD5

Type



V model, 4 stroke, turbocharged, intercooled, for generating application

Intersection angle



45°

Cylinder bore

mm

300

Piston stroke

mm

380

Total displacement

L

430

Rated output

kW

3960

4412

1h power

kW

4356

4800

Rated speed

rpm

600

Min. steady speed at zero load

rpm

200

Fuel consumption

g/kWh(g/Psh)

204(150)

Oil consumption

g/kWh(g/Psh)

≤2.18 (1.6)

Mean piston speed

m/s

7.6

Compression ratio



13

Mean effective pressure

MPa(kgf/cm2)

1.84(18.8)

2.05 (20.95)

Max. explosion pressure

MPa(kgf/cm2)

13.73 (140)

Boosting pressure

MPa(kgf/cm2)

0.255-0.275 (2.6-2.8)

Exhaust temperature

≤450℃

Gas temperature before turbine

≤600℃

Rotation direction



Counter-clockwise

(viewing from flywheel end to free end)

Ignition order



Right side: 1-6-2-4-8-3-7-5

Left side: 8-3-7-5-1-6-2-4

Air pressure for start

MPa(kgf/cm2)

1.18-2.94 (12-30)

Overall dimensions

l×w×h, mm

7316×2624×3110

Height of space for lifting the cylinder liner

mm

2425 above the crankshaft

Net weight

t

42.5

Generator

Model



TFW950

Rated output

kW

3600

4000

Rated voltage

kV

6.3

10.5

6.3

10.5

Rated current

A

412.4

247.4

458.2

275

Rated frequency

Hz

50/60

Rated speed

rpm

600

Number of poles



10/12



Technical specifications of 5000kW diesel generating sets



Gen-set

model

5000GF1

5000GF3

Rated output

kW(kVA)

5000(6250)

Rated voltage

kV

6.3

10.5

Rated current

A

573

343

Rated frequency

Hz

50/60

Rated speed

rpm

600

Power factor



0.8(lagging)

Phases and connection



Three phases, six wires

Overall dimensions

l×w×h, mm

11950×3450×3480

Net weight

t

105

diesel

Model



X16V320ZD

Type



V model, 4 stroke, turbocharged, intercooled, for generating application

Intersection angle



45°

Cylinder bore

mm

320

Piston stroke

mm

380

Total displacement

L

489

Rated output

kW

5588

1h power

kW

6146

Rated speed

rpm

600

Min. steady speed at zero load

rpm

232

Fuel consumption

g/kWh

196

Oil consumption

g/kWh

1.36

Mean piston speed

m/s

7.35

Compression ratio



12.5

Mean effective pressure

MPa(kgf/cm2)

2.37(23.25)

Max. explosion pressure

MPa(kgf/cm2)

15.5(152)

Boosting pressure

MPa(kgf/cm2)

0.33-0.34(3.24-3.34)

Exhaust temperature

≤450℃

Gas temperature before turbine

≤600℃

Rotation direction



Counter-clockwise

(viewing from flywheel end to free end)

Ignition order



Right side: 1-6-2-4-8-3-7-5

Left side: 8-3-7-5-1-6-2-4

Air pressure for start

MPa(kgf/cm2)

1.18-2.94(12-30)

Overall dimensions

l×w×h, mm

7570×3240×3480

Height of space for lifting the cylinder liner

mm

2425 above the crankshaft

Net weight

t

65

Generator

Model



TFW950

Rated output

kW

5000

Rated voltage

kV

6.3

10.5

Rated current

A

573

343

Rated frequency

Hz

50/60

Rated speed

rpm

600

Number of poles



10/12

2000kw / 2500kw / 3000kw  Fuel oil and Gas Engine Generator Set

Contact Details
KANGWEI ENVIRONMENT ENERGY GROUP

Contact Person: Mr. Charles

Tel: 86--13812510495

Fax: 86-510-85115375

Send your inquiry directly to us (0 / 3000)
