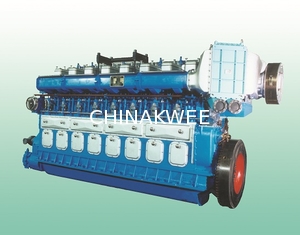

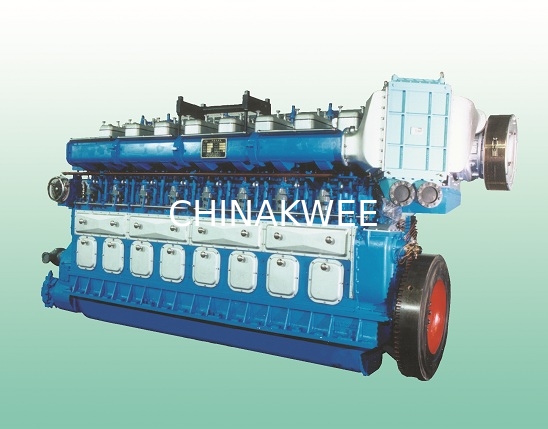

1000 - 2000kW middle speed HFO fired Generator Set
Applications:
homes, small shops & offices, industrial, ships, power plant , hosipital
| G300-MIDDLE SPEED MARINE DIESEL | |||
| G16V300 | G8300 | G6300 | G6300 |
| G8300 | G16V300 | ||
5)X320 MIDDLE SPEED DIESEL ENGINE
| X16V320 | X8320 | X8320 | X16V320 |
Competitive Advantage:
1.Successfully build technical cooperation with MAN Diesel & Turbo company;
2.Design and manufacture the lower , middle , highest diesel engine according to the market demand
3.Good after-sales service team
4.Quality recognized by CCS , GL, ABS, BV classification society in the world
Main Specification of 1000-2000kW Diesel Generating Sets (1)
|
Generating Set |
Model |
1000GF9 |
1000GF10 |
1000GF11 |
1250GF1A |
1250GF2A |
1250GF3A |
|
|
Rated power |
kW(kVA) |
1000(1250) |
1250(1562.5) |
|||||
|
Rated voltage |
kV |
0.4 |
6.3 |
10.5 |
6.3 |
0.4 |
10.5 |
|
|
Rated current |
A |
1804 |
114.6 |
68.7 |
143.2 |
2255 |
85.9 |
|
|
Rated frequency |
Hz |
50/60 |
||||||
|
Rated speed |
rpm |
500/514 |
||||||
|
Power factor |
|
0.8(lagging) |
||||||
|
Phase & connection |
|
3-phase 4-wire |
3-phase 6-wire |
3-phase 4-wire |
3-phase 6-wire |
|||
|
Overall dimensions L×B×H |
mm |
7264×2300×3465 |
7394×2300×3465 |
|||||
|
Net weight |
t |
32.5 |
34 |
|||||
|
Diesel Engine |
Model |
|
G6300ZD |
G6300ZD21 |
||||
|
Type |
|
Vertical in line, 4-stroke, turbocharged, intercool diesel engine for generating set |
||||||
|
Bore |
mm |
300 |
||||||
|
Stroke |
mm |
380 |
||||||
|
Total displacement |
L |
161 |
||||||
|
Rated power |
kW(Ps) |
1125(1530) |
1470(2000) |
|||||
|
1-hour power |
kW(Ps) |
1237.5(1683) |
1617(2200) |
|||||
|
Rated speed |
rpm |
500/514 |
600 |
|||||
|
Minimum no-load stable speed |
rpm |
200 |
200 |
|||||
|
Specific fuel consumption |
g/kWh(g/Psh) |
204(150) |
208(153) |
|||||
|
Specific lubricating-oil consumption |
g/kWh(g/Psh) |
2.18(1.60) |
2.18(1.60) |
|||||
|
Mean piston speed |
m/s |
6.33 |
7.6 |
|||||
|
Compression ratio |
|
13 |
13 |
|||||
|
Mean effective pressure |
MPa(kgf/cm2) |
1.68(17.1) |
1.83(18.6) |
|||||
|
Maximum explosion pressure |
MPa(kgf/cm2) |
11.77(120) |
13.73(140) |
|||||
|
Opening pressure of cylinder safety valve |
MPa(kgf/cm2) |
14.21(145) |
15.19(155) |
|||||
|
Idle compression pressure |
MPa(kgf/cm2) |
3.14-3.53(32-36) |
3.14-3.53(32-36) |
|||||
|
Turbocharger pressure |
MPa(kgf/cm2) |
0.23-0.255(2.35-2.6) |
0.25-0.28(2.5-2.85) |
|||||
|
Exhaust temperature of cylinder |
℃ |
≤450 |
||||||
|
Exhaust temperature before turbine |
℃ |
≤600 |
||||||
|
Rotation direction |
|
Counterclockwise (viewing from flywheel end to free end) |
||||||
|
Firing order |
|
1-4-2-6-3-5 |
||||||
|
Starting air pressure |
MPa(kgf/cm2) |
1.18-2.94(12-30) |
||||||
|
Overall dimensions |
L×B×H mm |
4731×1863×2900 |
7394×2300×3465 |
|||||
|
Height of hoisting piston |
mm |
2425 (above crankshaft) |
||||||
|
Net weight |
t |
17.5 |
||||||
|
Generator |
Model |
|
TFW500, TFW900 |
TFW900 |
||||
|
Rated power |
kW |
1000 |
1250 |
|||||
|
Rated voltage |
kV |
0.4 |
6.3 |
10.5 |
6.3 |
0.4 |
10.5 |
|
|
Rated current |
A |
1804 |
114.6 |
68.7 |
143.2 |
2255 |
85.9 |
|
|
Rated frequency |
Hz |
50/60 |
||||||
|
Rated speed |
rpm |
500/514 |
||||||
|
Pole number |
|
12/14 |
||||||
Main Specification of 1000-2000kW Diesel Generating Sets (2)
|
Generating Set |
Model |
|
|
|
1250GF1 |
1250GF2 |
1250GF3 |
||
|
Rated power |
kW(kVA) |
|
1250(1562.5) |
||||||
|
Rated voltage |
kV |
|
|
|
6.3 |
0.4 |
10.5 |
||
|
Rated current |
A |
|
|
|
143.2 |
2255 |
85.9 |
||
|
Rated frequency |
Hz |
50/60 |
|||||||
|
Rated speed |
rpm |
500/514 |
|||||||
|
Power factor |
|
0.8(lagging) |
|||||||
|
Phase & connection |
|
|
3-phase 6-wire |
3-phase 4-wire |
3-phase 6-wire |
||||
|
Overall dimensions L×B×H |
mm |
|
8904×2200×3286 |
9004×2360×3286 |
|||||
|
Net weight |
t |
|
38 |
39.7 |
|||||
|
Diesel Engine |
Model |
|
|
G8300ZD |
|||||
|
Type |
|
Vertical in line, 4-stroke, turbocharged, intercool diesel engine for generating set |
|||||||
|
Bore |
mm |
300 |
|||||||
|
Stroke |
mm |
380 |
|||||||
|
Total displacement |
L |
|
215 |
||||||
|
Rated power |
kW(Ps) |
|
1500(2040) |
||||||
|
1-hour power |
kW(Ps) |
|
1650(2244) |
||||||
|
Rated speed |
rpm |
500/514 |
|||||||
|
Minimum no-load stable speed |
rpm |
200 |
|||||||
|
Specific fuel consumption |
g/kWh(g/Psh) |
204(150) |
|||||||
|
Specific lubricating-oil consumption |
g/kWh(g/Psh) |
2.18(1.60) |
|||||||
|
Mean piston speed |
m/s |
6.33 |
|||||||
|
Compression ratio |
|
13 |
|||||||
|
Mean effective pressure |
MPa(kgf/cm2) |
1.68(17.1) |
|||||||
|
Maximum explosion pressure |
MPa(kgf/cm2) |
11.77(120) |
|||||||
|
Opening pressure of cylinder safety valve |
MPa(kgf/cm2) |
14.21(145) |
|||||||
|
Idle compression pressure |
MPa(kgf/cm2) |
3.14-3.53(32-36) |
|||||||
|
Turbocharger pressure |
MPa(kgf/cm2) |
0.23-0.255(2.35-2.6) |
|||||||
|
Exhaust temperature of cylinder |
℃ |
≤450 |
|||||||
|
Exhaust temperature before turbine |
℃ |
≤600 |
|||||||
|
Rotation direction |
|
Counterclockwise (viewing from flywheel end to free end) |
|||||||
|
Firing order |
|
|
1-6-2-4-8-3-7-5 |
||||||
|
Starting air pressure |
MPa(kgf/cm2) |
1.18-2.94(12-30) |
|||||||
|
Overall dimensions |
L×B×H mm |
|
5768×1670×2917 |
||||||
|
Height of hoisting piston |
mm |
2425 (above crankshaft) |
|||||||
|
Net weight |
t |
|
21 |
||||||
|
Generator |
Model |
|
|
TFW900 |
|||||
|
Rated power |
kW |
|
1250 |
||||||
|
Rated voltage |
kV |
|
|
|
6.3 |
0.4 |
10.5 |
||
|
Rated current |
A |
|
|
|
143.2 |
2255 |
85.9 |
||
|
Rated frequency |
Hz |
50/60 |
|||||||
|
Rated speed |
rpm |
500/514 |
|||||||
|
Pole number |
|
12/14 |
|||||||
Main Specification of 1000-1600kW Diesel Generating Sets (3)
|
Generating Set |
Model |
1600GF1 |
1600GF2 |
1600GF3 |
2000GF1 |
2000GF2 |
2000GF3 |
|
|
Rated power |
kW(kVA) |
1600(2000) |
2000(2500) |
|||||
|
Rated voltage |
kV |
6.3 |
0.4 |
10.5 |
6.3 |
0.4 |
10.5 |
|
|
Rated current |
A |
183 |
2886.7 |
110 |
229 |
3608.6 |
137.5 |
|
|
Rated frequency |
Hz |
50/60 |
||||||
|
Rated speed |
rpm |
500/514 |
600 |
|||||
|
Power factor |
|
0.8(lagging) |
||||||
|
Phase & connection |
|
3-phase 6-wire |
3-phase 4-wire |
3-phase 6-wire |
3-phase 4-wire |
3-phase 6-wire |
||
|
Overall dimensions L×B×H |
mm |
9124×2360×3286 |
9263×2565×3286 |
|||||
|
Net weight |
t |
40 |
45 |
|||||
|
Diesel Engine |
Model |
|
G8300ZD13 |
G8300ZD21 |
||||
|
Type |
|
Vertical in line, 4-stroke, turbocharged, intercool diesel engine for generating set |
||||||
|
Bore |
mm |
300 |
||||||
|
Stroke |
mm |
380 |
||||||
|
Total displacement |
L |
215 |
||||||
|
Rated power |
kW(Ps) |
1765(2400) |
2206(3000) |
|||||
|
1-hour power |
kW(Ps) |
1942(2640) |
2426(3300) |
|||||
|
Rated speed |
rpm |
500/514 |
600 |
|||||
|
Minimum no-load stable speed |
rpm |
200 |
200 |
|||||
|
Specific fuel consumption |
g/kWh(g/Psh) |
204(150) |
208(153) |
|||||
|
Specific lubricating-oil consumption |
g/kWh(g/Psh) |
2.18(1.60) |
2.18(1.60) |
|||||
|
Mean piston speed |
m/s |
6.33 |
7.6 |
|||||
|
Compression ratio |
|
13 |
13 |
|||||
|
Mean effective pressure |
MPa(kgf/cm2) |
2(20.4) |
2.05(20.9) |
|||||
|
Maximum explosion pressure |
MPa(kgf/cm2) |
12.75(130) |
13.73(140) |
|||||
|
Opening pressure of cylinder safety valve |
MPa(kgf/cm2) |
15.19(155) |
15.19(155) |
|||||
|
Idle compression pressure |
MPa(kgf/cm2) |
3.14-3.53(32-36) |
||||||
|
Turbocharger pressure |
MPa(kgf/cm2) |
0.23-0.255(2.35-2.6) |
||||||
|
Exhaust temperature of cylinder |
℃ |
≤450 |
||||||
|
Exhaust temperature before turbine |
℃ |
≤600 |
||||||
|
Rotation direction |
|
Counterclockwise (viewing from flywheel end to free end) |
||||||
|
Firing order |
|
1-6-2-4-8-3-7-5 |
||||||
|
Starting air pressure |
MPa(kgf/cm2) |
1.18-2.94(12-30) |
||||||
|
Overall dimensions |
L×B×H mm |
5768×1670×2917 |
5818×1670×2917 |
|||||
|
Height of hoisting piston |
mm |
2425 (above crankshaft) |
||||||
|
Net weight |
t |
21 |
24 |
|||||
|
Generator |
Model |
|
TFW900 |
|||||
|
Rated power |
kW |
1600 |
2000 |
|||||
|
Rated voltage |
kV |
6.3 |
0.4 |
10.5 |
6.3 |
0.4 |
10.5 |
|
|
Rated current |
A |
183 |
2886.7 |
110 |
229 |
3608.6 |
137.5 |
|
|
Rated frequency |
Hz |
50/60 |
||||||
|
Rated speed |
rpm |
500/514 |
600 |
|||||
|
Pole number |
|
12/14 |
10/12 |
|||||
