Gas / Coal / oil fired steam boiler High Pressure Steam Horizontal Steam Boiler

China Gas / Coal / oil fired steam boiler High Pressure Steam Horizontal Steam Boiler supplier
Gas / Coal / oil fired steam boiler High Pressure Steam Horizontal Steam Boiler supplier Gas / Coal / oil fired steam boiler High Pressure Steam Horizontal Steam Boiler supplier Gas / Coal / oil fired steam boiler High Pressure Steam Horizontal Steam Boiler supplier

Large Image :  Gas / Coal / oil fired steam boiler High Pressure Steam Horizontal Steam Boiler

Product Details:

Place of Origin: china
Brand Name: KANGWEI
Certification: ABS,BV,NK
Model Number: According to the design and technical demand
Fuel: oil/gas/Coal

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: negotiated
Packaging Details: CONTAINER ,WOODEN CASE
Delivery Time: Negotiate
Payment Terms: T/T, L/C
Supply Ability: depend on the designing capacity
Contact Now
Detailed Product Description

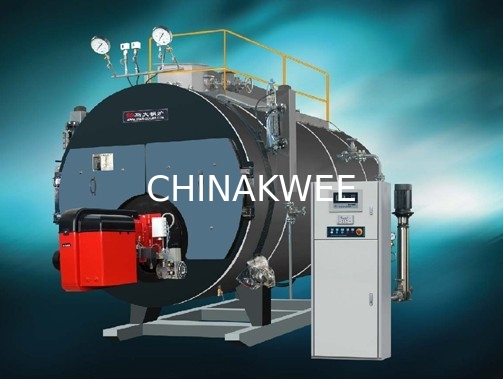

Gas / Coal / oil fired steam boiler​ High Pressure Steam Horizontal  steam Boiler



1.Applications:

Marine  /Industry



2.FACTORY ASSURANCE:

  1. One year parts warranty
  2. Spare parts available at ex-factory price
  3. Different voltage available
  4. 100% tested before delivery
  5. Minimum installation on site, electrical hook up, water pipe connection, steam pipe connection and drain only
  6. Skid-mounted complete system available
  7. Complete system in container available

3.SPECIFICATIONS:

Model

Items

WNS0.5-0.8-Y/Q WNS0.75-0.8-Y/Q WNS1-0.8-Y/Q
Boiler horsepower 32 HP 48 HP 63.8 HP
Rated steam output 500 KG/HOUR 750 KG/HOUR 1000 KG/HOUR

Maximum working pressure

(manual reset)

<0.8MPa / 116PSI <0.8MPa / 116PSI <0.8MPa / 116PSI
Saturated steam temperature <174°C <174°C <174°C
Material of main body 20# carbon steel 20# carbon steel 20# carbon steel
Thickness of main body 12mm 14mm 14mm
Thermal efficiency >88% >88% >88%
Fuel consumption 0# diesel 34kg/h 51kg/h 68kg/h
Natural gas 40.6Nm3/h 60.9Nm3/h 81.2Nm3/h
LPG 27.3kg/h 41kg/h 54.6kg/h
Packing dimensions L 2680mm 2680mm 3982mm
W 1660mm 1760mm 1917mm
H 1680mm 1996mm 2090mm

Gas / Coal / oil fired steam boiler High Pressure Steam Horizontal Steam BoilerGas / Coal / oil fired steam boiler High Pressure Steam Horizontal Steam Boiler

Gas / Coal / oil fired steam boiler High Pressure Steam Horizontal Steam Boiler
