11000V Stationary / Land Diesel or heavy fuel oil or gas Genset Power Plant

China 11000V Stationary / Land Diesel or heavy fuel oil or gas Genset Power Plant supplier
11000V Stationary / Land Diesel or heavy fuel oil or gas Genset Power Plant supplier 11000V Stationary / Land Diesel or heavy fuel oil or gas Genset Power Plant supplier

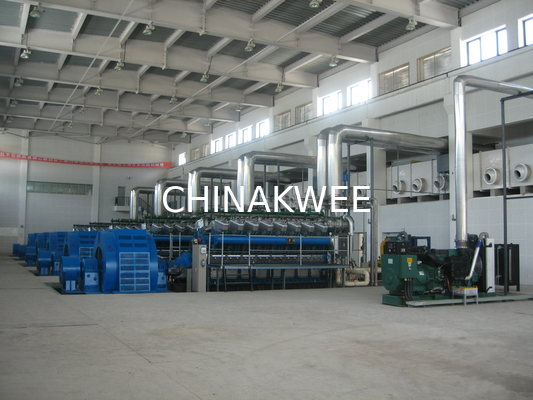

Large Image :  11000V Stationary / Land Diesel or heavy fuel oil or gas Genset Power Plant

Product Details:

Place of Origin: WUXI , CHINA
Brand Name: KANGWEI
Certification: CCS,BV,GL
Model Number: According to the design and technical demand
Fuel: light fuel oil/heavy fuel oil/gas

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: negotiated
Packaging Details: CONTAINER ,WOODEN CASE
Delivery Time: Negotiate
Payment Terms: T/T, L/C
Supply Ability: 20SETS
Contact Now
Detailed Product Description







Technical specificaiton for Power plant equipments
. Gen-set technical specification
No. Item Unit Specification
1 Model   1250/2000/2500/3500GF
2 Rated power  kW  1250/2000/250003500
3 Rated rev. rpm 600
4 Rated voltage V 11000
5 Rated current  A 229.6
6 Frequency  Hz 50Hz
7 Power factor   0.8 (lagging)
8 Phase   3-phase
9 Voltage fluctuation rate % ±1
10 Frequency (rev.)  fluctuation rate % ±0.5
11 Stable voltage regulating rate % ±2.5
12 Stable frequency (rev.) regulating rate % 5
13 Transient voltage regulating rate % ±20-15
14 Stabilizing time s 5
15 Voltage regulating method   Auto
16 Speed Governor   Electronic hydraulic
17 Frequency regulating method   Auto / Manual
18 Lubricating method   Pressure lubricating
19 Cooling method    Close circuit of fresh cooling water
20 Coupling    Flexiable
21 Painting color   Blue
22 Overall dimension mm 9890x2560x4015
23 Net weight kg 75000
. Diesel engine specification
No. Item Unit Specification
1 Engine Model   DN8340ZD2
2 Type   In-line, 8-Cyls, four-stroke, direct injection, charged, inter cooled
3 Bore mm 340
4 Stroke  mm 450
5 Total displacemen L 408.35
6 Mean piston seed  m/s 9
7 Rated power KW 4200
8 Rated rev. rpm 600
9 Overload  (1 hr per 12 hrs)                        kW/rpm 4620/600
10 Mean effective pressure MPa 2.56
11 Compression ratio   13.5
12 Rotation direction   Clockwise, viewed from flywheel end.
13 Firing order   1-4-7-6-8-5-2-3
14 Specific fuel oil consumption g/kW.h 198+3%
15 Specific Lube oil consumption g/kW.h < 1.2g/kW.h
16 Smoke RB ≤0.3
17 Noise dB(A) 105
18 Starting method   Air Rotary valve
19 Cooling system   Fresh water cooling
20 Lubricating system   Pressure lubricating
21 Fuel oil specification   Diesel oil and 720Cst/50℃ HFO
22 Lube oil specification   CD40 with TBN according HFO
23 Piston lifting height mm 2365
24 Overall dimension mm 7213×1850×3625mm
25 Net weight kg 47000
. Alternator specification
No. Item Unit Specification
1 Alternator Model   TFW3800
2 Type   Brushless  generator
3 Rated power kW  3500
4 Rated voltage V 11000
5 Rated current A 229.6
6 Frequency Hz 50
7 Power factor   0.8 (lagging)
8 Working condition   Continuous
9 Phase and connection   3-phase
10 Voltage regulation method   Brushless, self excited
11 Insulation Class   F
12 Protection Class   IP23
Ⅳ Cooling tower specification
No. Item Unit Specification
1 Cooling tower model   GBL-150
2 Inlet temperature 60
3 Outlet  35
4 Base Plane Size mm Ф4460×5095
5 Blade amount   4
6 Fan diameter mm Ф3400
7 Motor fan power kW 11
8 Inlet pipe demension mm DN200
9 Outlet pipe demension mm DN250



G300 Statinary Generating Sets Main Specification
Model 1000GF1 1250GF3 1350GF4 1400GF4
Rated power, KW 1000 1250 1350 1400
Overload , KW 1100 1375 1485 1540
Rated voltage, V 400/415/440/3300/6300/10500/13800
Rated current , A
Frequency , Hz 50 60 50 60 50 60 50 60
Power factor 0.8 Lagging
Phase 3
Diesel engine G6300ZD6 G6300ZD8 G8300ZD6 G6300ZD10 G8300ZD10 G8300ZD8 G8300ZD10 G8300ZD8
Rated power, KW 1103 1470 1471 1471 1765 2000 1765 2000
Rated rev, rpm 500 600 500 600 500 600 500 600
Alternator 3 phase alternator
voltage fluctuation rate% <0.5 <0.5
Frequency fluctuation rate, % <0.5 <0.5
Stable voltage regulating rate, % ±1.0 ±1.0
Transient voltage regulating rate, % +20, -15 +20, -15
Stable Frequency fluctuation rate, % <3 <0.5
Transient frequency regulating rate, % +12, -10
Stablizing time, voltage , S <4
Stablizing time, frequency , S <3
voltage regulating method automatic and munual
Frequency regulating method manual
starting method compressed air
Lubricating method pressue lubricating
Cooking method water cooling
coupling flexible
Overdimension, mm 3880*2150*3180 8470*2360*3060
Weight, Kg 30000 35000 38000
G300 Statinary Generating Sets Main Specification
1500GF6 1600GF5 1800GF7 2000GF8
1500 1600 1800 2000
1650 1760 1980 2200
400/415/440/3300/6300/10500/13800

50 60 50 60 50 60 50 60
0.8 Lagging
3
G8300ZD10 G8300ZD8 G8300ZD10 G8300ZD8 G8300ZD8 G8300ZD8 G8300ZD12 G8300ZD8
1765 2000 1765 2000 2000 2000 2206 2000
500 600 500 600 600 600 600 600
3 phase alternator
<0.5
<0.5
±1.0
20, -15
<0.5
+20, -15
<5
<4
automatic and munual
manual
compressed air
pressue lubricating
water cooling
flexible
8470*2360*3060
38000 42560





Remark



1.the generator voltage and frequency can be selected

2.rating for the generator set is based on the following standard conditions

air temperature :25℃

total barometric pressure 100kpa

charge air coolant temperature 25℃

relative humidity 30%

If test ambient conditions are not same as the standard ambient conditions, the power and fuel consumptions should be revised according to GB/T6072.1-2000

3.The generator set can operate under overload, intermittently for 1 hour every 12h, the fuel injection quantity is usualy locked in the rated power position



GN8320 Stationary Generating Sets Main Specification

Model

2400GF

2500GF

Rated power, KW

2400

2500

Overload , KW

2640

2750

Rated voltage, V

400

415

3300

6300

10500

400

415

3300

6300

10500

Rated current , A

4330

4174

525

275

165

4511

4348

547

172

286

Frequency , Hz

50

50

Power factor

0.8 Lagging

0.8 Lagging

Phase

3

3

Diesel engine

GN832000ZD

GN8320ZD

Rated power, KW

2648

2795

Rated rev, rpm

750

750

Alternator

3 phase alternator

voltage fluctuation rate%

±1.0

Frequency fluctuation rate, %

+12, -10

Stable voltage regulating rate, %

3

Transient voltage regulating rate, %

+12, -10

Stable Frequency fluctuation rate, %

4



Transient frequency regulating rate, %

5

Stabilizing time, voltage , S

+1

Stabilizing time, frequency , S

+12, -10

voltage regulating method

automatic and manual

Frequency regulating method

manual

starting method

compressed air

Lubricating method

pressure lubricating

Cooking method

water cooling

coupling

flexible

Overdimension, mm

8950*2570*6050

Weight, Kg

45000





Remark



1.the generator voltage and frequency can be selected

2.rating for the generator set is based on the following standard conditions

air temperature :25℃

total barometric pressure

charge air coolant temperature

relative humidity

If test ambient conditions are not same as the standard ambient conditions, the power and fuel consumptions should be revised according to GB/T6072.1-2000

3.The generator set can operate under overload, intermittently for 1 hour every 12h, the fuel injection quantity is usualy locked in the rated power position
