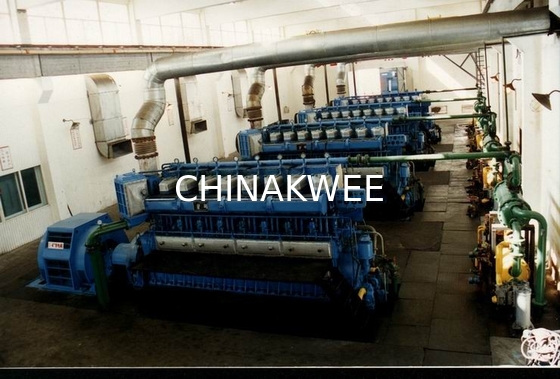

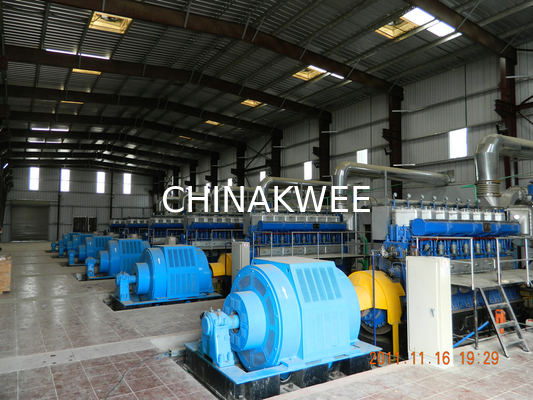

| High Light: | HFO power plant,diesel power plant |
||
|---|---|---|---|
| Technical specificaiton for HFO Power plant equipments | |||
| Ⅰ. Gen-set technical specification | |||
| No. | Item | Unit | Specification |
| 1 | Model | 1250/2000/2500/3500GF | |
| 2 | Rated power | kW | 1250/2000/250003500 |
| 3 | Rated rev. | rpm | 600 |
| 4 | Rated voltage | V | 11000 |
| 5 | Rated current | A | 229.6 |
| 6 | Frequency | Hz | 50Hz |
| 7 | Power factor | 0.8 (lagging) | |
| 8 | Phase | 3-phase | |
| 9 | Voltage fluctuation rate | % | ±1 |
| 10 | Frequency (rev.) fluctuation rate | % | ±0.5 |
| 11 | Stable voltage regulating rate | % | ±2.5 |
| 12 | Stable frequency (rev.) regulating rate | % | 5 |
| 13 | Transient voltage regulating rate | % | ±20～-15 |
| 14 | Stabilizing time | s | 5 |
| 15 | Voltage regulating method | Auto | |
| 16 | Speed Governor | Electronic hydraulic | |
| 17 | Frequency regulating method | Auto/Manual | |
| 18 | Lubricating method | Pressure lubricating | |
| 19 | Cooling method | Close circuit of fresh cooling water | |
| 20 | Coupling | Flexiable | |
| 21 | Painting color | Blue | |
| 22 | Overall dimension | mm | 9890x2560x4015 |
| 23 | Net weight | kg | 75000 |
| Ⅱ. Diesel engine specification | |||
| No. | Item | Unit | Specification |
| 1 | Engine Model | DN8340ZD2 | |
| 2 | Type | In-line, 8-Cyls, four-stroke, direct injection, charged, inter cooled | |
| 3 | Bore | mm | 340 |
| 4 | Stroke | mm | 450 |
| 5 | Total displacemen | L | 408.35 |
| 6 | Mean piston seed | m/s | 9 |
| 7 | Rated power | KW | 4200 |
| 8 | Rated rev. | rpm | 600 |
| 9 | Overload (1 hr per 12 hrs) | kW/rpm | 4620/600 |
| 10 | Mean effective pressure | MPa | 2.56 |
| 11 | Compression ratio | 13.5 | |
| 12 | Rotation direction | Clockwise, viewed from flywheel end. | |
| 13 | Firing order | 1-4-7-6-8-5-2-3 | |
| 14 | Specific fuel oil consumption | g/kW.h | 198+3% |
| 15 | Specific Lube oil consumption | g/kW.h | < 1.2g/kW.h |
| 16 | Smoke | RB | ≤0.3 |
| 17 | Noise | dB(A) | 105 |
| 18 | Starting method | Air Rotary valve | |
| 19 | Cooling system | Fresh water cooling | |
| 20 | Lubricating system | Pressure lubricating | |
| 21 | Fuel oil specification | Diesel oil and 720Cst/50℃ HFO | |
| 22 | Lube oil specification | CD40 with TBN according HFO | |
| 23 | Piston lifting height | mm | 2365 |
| 24 | Overall dimension | mm | 7213×1850×3625mm |
| 25 | Net weight | kg | 47000 |
| Ⅲ. Alternator specification | |||
| No. | Item | Unit | Specification |
| 1 | Alternator Model | TFW3800 | |
| 2 | Type | Brushless generator | |
| 3 | Rated power | kW | 3500 |
| 4 | Rated voltage | V | 11000 |
| 5 | Rated current | A | 229.6 |
| 6 | Frequency | Hz | 50 |
| 7 | Power factor | 0.8 (lagging) | |
| 8 | Working condition | Continuous | |
| 9 | Phase and connection | 3-phase | |
| 10 | Voltage regulation method | Brushless, self excited | |
| 11 | Insulation Class | F | |
| 12 | Protection Class | IP23 | |
| Ⅳ Cooling tower specification | |||
| No. | Item | Unit | Specification |
| 1 | Cooling tower model | GBL-150 | |
| 2 | Inlet temperature | ℃ | 60 |
| 3 | Outlet | ℃ | 35 |
| 4 | Base Plane Size | mm | Ф4460×5095 |
| 5 | Blade amount | 4 | |
| 6 | Fan diameter | mm | Ф3400 |
| 7 | Motor fan power | kW | 11 |
| 8 | Inlet pipe demension | mm | DN200 |
| 9 | Outlet pipe demension | mm | DN250 |
The power fuel can be diesel oil, bio-diesel, heavy fuel oil (HFO) or bi-fuel
| G300 Statinary Generating Sets Main Specification | ||||||||
| Model | 1000GF1 | 1250GF3 | 1350GF4 | 1400GF4 | ||||
| Rated power, KW | 1000 | 1250 | 1350 | 1400 | ||||
| Overload , KW | 1100 | 1375 | 1485 | 1540 | ||||
| Rated voltage, V | 400/415/440/3300/6300/10500/13800 | |||||||
| Rated current , A | ||||||||
| Frequency , Hz | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 |
| Power factor | 0.8 Lagging | |||||||
| Phase | 3 | |||||||
| Diesel engine | G6300ZD6 | G6300ZD8 | G8300ZD6 | G6300ZD10 | G8300ZD10 | G8300ZD8 | G8300ZD10 | G8300ZD8 |
| Rated power, KW | 1103 | 1470 | 1471 | 1471 | 1765 | 2000 | 1765 | 2000 |
| Rated rev, rpm | 500 | 600 | 500 | 600 | 500 | 600 | 500 | 600 |
| Alternator | 3 phase alternator | |||||||
| voltage fluctuation rate% | ＜0.5 | ＜0.5 | ||||||
| Frequency fluctuation rate, % | ＜0.5 | ＜0.5 | ||||||
| Stable voltage regulating rate, % | ±1.0 | ±1.0 | ||||||
| Transient voltage regulating rate, % | +20, -15 | +20, -15 | ||||||
| Stable Frequency fluctuation rate, % | ＜3 | ＜0.5 | ||||||
| Transient frequency regulating rate, % | +12, -10 | |||||||
| Stablizing time, voltage , S | ＜4 | |||||||
| Stablizing time, frequency , S | ＜3 | |||||||
| voltage regulating method | automatic and munual | |||||||
| Frequency regulating method | manual | |||||||
| starting method | compressed air | |||||||
| Lubricating method | pressue lubricating | |||||||
| Cooking method | water cooling | |||||||
| coupling | flexible | |||||||
| Overdimension, mm | 3880*2150*3180 | 8470*2360*3060 | ||||||
| Weight, Kg | 30000 | 35000 | 38000 | |||||
| G300 Statinary Generating Sets Main Specification | |||||||
| 1500GF6 | 1600GF5 | 1800GF7 | 2000GF8 | ||||
| 1500 | 1600 | 1800 | 2000 | ||||
| 1650 | 1760 | 1980 | 2200 | ||||
| 400/415/440/3300/6300/10500/13800 | |||||||
| 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 |
| 0.8 Lagging | |||||||
| 3 | |||||||
| G8300ZD10 | G8300ZD8 | G8300ZD10 | G8300ZD8 | G8300ZD8 | G8300ZD8 | G8300ZD12 | G8300ZD8 |
| 1765 | 2000 | 1765 | 2000 | 2000 | 2000 | 2206 | 2000 |
| 500 | 600 | 500 | 600 | 600 | 600 | 600 | 600 |
| 3 phase alternator | |||||||
| ＜0.5 | |||||||
| ＜0.5 | |||||||
| ±1.0 | |||||||
| 20, -15 | |||||||
| ＜0.5 | |||||||
| +20, -15 | |||||||
| ＜5 | |||||||
| ＜4 | |||||||
| automatic and munual | |||||||
| manual | |||||||
| compressed air | |||||||
| pressue lubricating | |||||||
| water cooling | |||||||
| flexible | |||||||
| 8470*2360*3060 | |||||||
| 38000 | 42560 | ||||||
Remark
1.the generator voltage and frequency can be selected
2.rating for the generator set is based on the following standard conditions
air temperature :25℃
total barometric pressure 100kpa
charge air coolant temperature 25℃
relative humidity 30%
If test ambient conditions are not same as the standard ambient conditions, the power and fuel consumptions should be revised according to GB/T6072.1-2000
3.The generator set can operate under overload, intermittently for 1 hour every 12h, the fuel injection quantity is usualy locked in the rated power position
|
GN8320 Stationary Generating Sets Main Specification |
||||||||||
|
Model |
2400GF |
2500GF |
||||||||
|
Rated power, KW |
2400 |
2500 |
||||||||
|
Overload , KW |
2640 |
2750 |
||||||||
|
Rated voltage, V |
400 |
415 |
3300 |
6300 |
10500 |
400 |
415 |
3300 |
6300 |
10500 |
|
Rated current , A |
4330 |
4174 |
525 |
275 |
165 |
4511 |
4348 |
547 |
172 |
286 |
|
Frequency , Hz |
50 |
50 |
||||||||
|
Power factor |
0.8 Lagging |
0.8 Lagging |
||||||||
|
Phase |
3 |
3 |
||||||||
|
Diesel engine |
GN832000ZD |
GN8320ZD |
||||||||
|
Rated power, KW |
2648 |
2795 |
||||||||
|
Rated rev, rpm |
750 |
750 |
||||||||
|
Alternator |
3 phase alternator |
|||||||||
|
voltage fluctuation rate% |
±1.0 |
|||||||||
|
Frequency fluctuation rate, % |
+12, -10 |
|||||||||
|
Stable voltage regulating rate, % |
3 |
|||||||||
|
Transient voltage regulating rate, % |
+12, -10 |
|||||||||
|
Stable Frequency fluctuation rate, % |
4
|
|||||||||
|
Transient frequency regulating rate, % |
5 |
|||||||||
|
Stabilizing time, voltage , S |
+1 |
|||||||||
|
Stabilizing time, frequency , S |
+12, -10 |
|||||||||
|
voltage regulating method |
automatic and manual |
|||||||||
|
Frequency regulating method |
manual |
|||||||||
|
starting method |
compressed air |
|||||||||
|
Lubricating method |
pressure lubricating |
|||||||||
|
Cooking method |
water cooling |
|||||||||
|
coupling |
flexible |
|||||||||
|
Overdimension, mm |
8950*2570*6050 |
|||||||||
|
Weight, Kg |
45000 |
|||||||||
Remark
1.the generator voltage and frequency can be selected
2.rating for the generator set is based on the following standard conditions
air temperature :25℃
total barometric pressure
charge air coolant temperature
relative humidity
If test ambient conditions are not same as the standard ambient conditions, the power and fuel consumptions should be revised according to GB/T6072.1-2000
3.The generator set can operate under overload, intermittently for 1 hour every 12h, the fuel injection quantity is usualy locked in the rated power position
