Silence Sound Proof Oil Power Plant MAN Containerized Generate Set

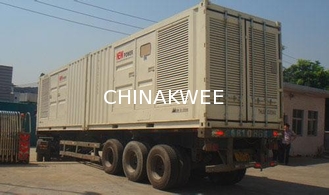

Large Image : Silence Sound Proof Oil Power Plant MAN Containerized Generate Set

Product Details:

Place of Origin:	KANGWEI POWER ,CHINA
Brand Name:	KWEE
Certification:	BV/IEC
Model Number:	KWEE-CPP

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	300000-900000USD
Packaging Details:	Standard container
Delivery Time:	Negotiation
Supply Ability:	30SET/MONTH

Contact Now

Detailed Product Description

Power Range:	500-2000kw	Fuel:	Diesel Oil / Heavy Fuel Oil
Voltage:	400/6000/11000v	Package:	Standard Container 20/40 Feet
High Light:	Fired Power Plant , generator power plant

Power Range:

500-2000kw

Fuel:

Diesel Oil / Heavy Fuel Oil

Voltage:

400/6000/11000v

Package:

Standard Container 20/40 Feet

High Light:

Fired Power Plant

generator power plant

1.OVERVIEW

This portable generator provides the factory-installed, dual-fuel option which allows power customers to substantially reduce costs and meet changing fuel availability by utilizing a wide range of gaseous fuels. Designed for use with the 50 Hz /60Hz power module driven by the MAN engine, the DCS advanced control system automatically adjusts to changes in incoming fuel quality and pressure. This allows the engine to run on a wide variety of fuels, from diesel oil to heavy fuel oil, with no loss of performance integrity, which makes it an ideal generator rental unit.

2.GENERATOR

UNITS:

METRIC

Continuous Rating	500-2000kw
Frequency	50 /60 Hz
Voltage	400/240/6000 V
Frame Size
Pitch	0.6667
No. of poles	4
Excitation	Static regulated brushless PM excited
Constructions	Double bearing, close coupled
Insulation	Class H
Enclosure	Drip proof IP22
Prime Rating	Depend on the rated power
Alignment	Pilot shaft
Overspeed capability – % of rated	110% of rated
Voltage regulator	3 phase sensing with Volts-per-Hertz
Voltage regulation	Less than ± 0.5% voltage gain; Adjustable to compensate for engine speed droop and line loss
Wave form deviation	Less than 5% deviation
Telephone Influence Factor (TIF)	Less than 50
Harmonic Distortion (THD)	Less than 5%

ENGINE

MAN-Dual Fuel Engine	4-Stroke diesel
Bore	mm
Stroke	mm
Displacement	69.0 L
Compression ratio	15:1
Aspiration	TA
Fuel system	EUI
Governor type	4Control System
Emissions	Non-Certified

3.BENEFITS

3.1 SINGLE SOURCE SUPPLIER

Generator set manufactured in ISO 9001:2000 compliant facility
Package factory designed and production tested
Generator set and components meet or exceed the following specifications: BS4999, DIN6271, DIN6280, EGSA101P, JEM1359, IEC 34/1, ISO3046/1, ISO8528

3.2 WORLDWIDE PRODUCT SUPPORT

MAN® dealers provide extensive post sale support including maintenance and repair agreements
Supported 100% by your MAN dealer with warranty on parts and labor

3.3RELIABLE, FUEL EFICIENT DIESEL ENGINE

The compact, four-stroke-cycle turbocharged-aftercooled diesel engine combines durability while providing dependability and economy
Stainless steel engine aftercooler core to extend component, oil, and overall engine life when using gaseous fuels with elevated H2S levels
Fuel system operates on a variety of gaseous fuels
Integral gas train, gas filter, and isolation valve
Includes methane detection system and related safeties

3.4 GENERATOR-ABB

ABB frame generator designed to match the performance and output characteristics of the MAN diesel engine
Double bearing, wye-connected, static regulated, brushless, permanent magnet excited

3.5 REDUCED ENVIRONMENTAL IMPACT

110% spill containment of onboard engine fluids
Positive crankcase fumes ventilation

3.6 SOUND ATTENUATED CONTAINER

Provides 9-high stack CSC rated enclosure for ease of transportation and protection(Option)
Meets 75 dB(A) at 15 meters or below per SAE J1074 measurement procedure at prime rating(Option)

3.7 COOLING SYSTEM

Horizontally mounted radiator with vertical discharge with high efficiency fan
Provides 43C ambient capability
Variable frequency drive fan controls improve partial load fuel consumption

3.8 ON-PACKAGE PARALLELING CONTROL SYSTEM

Provides auto paralleling using package mounted controls
EMCP 4.3 offers engine and generator monitoring and protection, including DCS enable and substitution level set points
AGC-4 provides paralleling, load sharing, VFD control, and primary generator protection
