Horizontal Centrifugal Decanter Centrifuges 2 / 3 Phase For Industrial Waste Water Treatment

China Horizontal Centrifugal Decanter Centrifuges 2 / 3 Phase For Industrial Waste Water Treatment supplier
Horizontal Centrifugal Decanter Centrifuges 2 / 3 Phase For Industrial Waste Water Treatment supplier Horizontal Centrifugal Decanter Centrifuges 2 / 3 Phase For Industrial Waste Water Treatment supplier Horizontal Centrifugal Decanter Centrifuges 2 / 3 Phase For Industrial Waste Water Treatment supplier

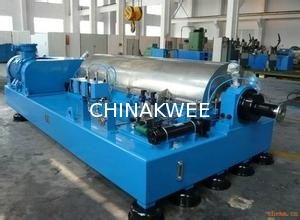

Large Image :  Horizontal Centrifugal Decanter Centrifuges 2 / 3 Phase For Industrial Waste Water Treatment

Product Details:

Place of Origin: CHINA
Brand Name: LWFS
Certification: ISO9001、 OEM
Model Number: 30202

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Based on detailed order
Packaging Details: Poly bag + box into Carton + Plywood Case
Delivery Time: 3~30 DAYS
Payment Terms: T/T
Supply Ability: Based on detailed order
Detailed Product Description
High Light:

Oilfield Decanter Centrifuge

,

Horizontal Decanter Centrifuge





oilfield drilling fluids decanter centrifuge is used  for separating suspension of solids phase with particle diameter(d≥2μm) for drilling mud circulation and drilling fluids recycling. Ruggedly built for oilfield and industrial services, drilling mud centrifuge is especially effective in environmentally sensitive areas. It delivers high fluid-recovery rates and efficient solids control to significantly reduce the costs of makeup fluids and disposal. The oil drilling mud decanting centrifuge must test the dynamic balance for smooth operation over long periods.Speed ranging from 0 to 3900 RPM, generating centrifugal forces reach up to 3000G





Quick Detail:



1. Innovative design includes longer bowl for increased retention time, resulting in drier solids and finer cut points.

2. Big bowl Big Volume, high G force available.

3. Stainless steel bowl, scroll, compartment and cover resist corrosion and provide long service life.

4. Tungsten carbide scroll points with wide spacing flights at tapered end create a finer layer of conveyed solids for consistent, uniform separation and maximum solids control efficiency.

5. German FAG or Sweden SKF brand bearings.

6. Electrical Components: SIEMENS/Schneider ATEX or IEC Ex for option.

7. Screw pump & drilling mud centrifugal pump feeding pump option available to meet different application.



Tapered Roller Bearing Metric 30202(7202)



Description:



Model

DC450S (Fixed)
DC450S (VFD)

DC450L
(Fixed speed)

DC355 (Fixed)
DC355 (VFD)

DC600
(Fixed speed)

Bowl Diameter mm/in

450/17.7

450/17.7

355/14

600/23.6

Bowl Length mm/in

842/33.1

1000/39.4

1257/49.5

1000/39.4

Max Capacity m3/h/GPM

40/176

40/176

30/132

60/264

Working Speed(Fixed)  RPM

1800/2200

1800/2200

2000/2200/3000

1500

Bowl speed(Fixed)

3300

3600

3900

2600

Bowl Speed(VFD)  RPM

0-3300

0-3600

0-3900

0-2600

G-Force

820/1215

820/1215

794/960/2160

755

Separation point µm

≥5

≥5

≥3

≥5

Main Drive Kw/HP

22/30

30/40

22/30/30/40

45/60

Back Drive Kw/HP

5.5/7.5

7.5/10

5.5/7.5/7.5/10

7.5/10





Applications:



  1. washing and dehydration of starch
  2. dewatering of soybean and wheat proteins
  3. dewatering offish meal and fish
  4. purification of juice and dewatering of fruit fiber
  5. separation of animal and vegetable oil



Competitive Advantage:



1. We are a manufacture

2. Low noise, less vibration, high precision and long life

3. Competitive price, Perfect after-sale servie

4. Rich stock, OEM service

5. Sample is available

6. Quick delivery
