Product Details:
Payment & Shipping Terms:
|
| Layout: | Vertical Or Horizontal | Model: | LFY |
|---|---|---|---|
| Working Pressure: | 0.7-10 Mpa /bar | Output: | Steam |
| Certificate: | CCS/BV/ABS/RS/GL/DNV | Heating Surface: | 35-180m2 |
| Service: | After Sales |

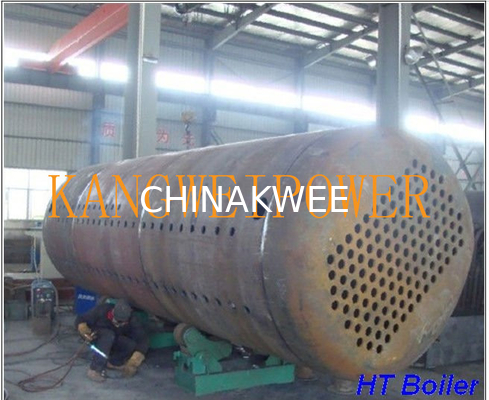

LFY-type exhaust gas economizer BV / GL / RS / NK 7-10 Bar exhaust Gas Boilers
Marine steam boiler
1.Applications:
Marine /Industry
2.Factory Assurance:
3.Factory Designing
According to the customer special technical demand!
| type and specs |
heating surface(m2) |
working pressure(Mpa) | engine power(kw) | dimensions(mm) | weight(kg) | |||
| H | D | D1 | C | |||||
| LFY35-0.7 | 35 | 0.7 | 1100-1600 | 3320 | 1020 | 400 | 750 | 3000 |
| LFY55-0.7 | 55 | 0.7 | 1800-2400 | 3520 | 1220 | 500 | 850 | 3800 |
| LFY70-0.7 | 70 | 0.7 | 2300-3000 | 3520 | 1320 | 500 | 900 | 4400 |
| LFY85-0.7 | 85 | 0.7 | 3000-3800 | 3520 | 1450 | 600 | 1000 | 5600 |
| LFY100-0.7 | 100 | 0.7 | 3500-4500 | 3520 | 1550 | 600 | 1050 | 7000 |
| LFY120-0.7 | 120 | 0.7 | 4500-5500 | 3600 | 1920 | 9000 | ||
| LFY150-0.7 | 150 | 0.7 | 5500-6500 | 3700 | 2020 | 11000 | ||
| LFY180-0.7 | 180 | 0.7 | 6500-8000 | 3700 | 2220 | 13500 |
