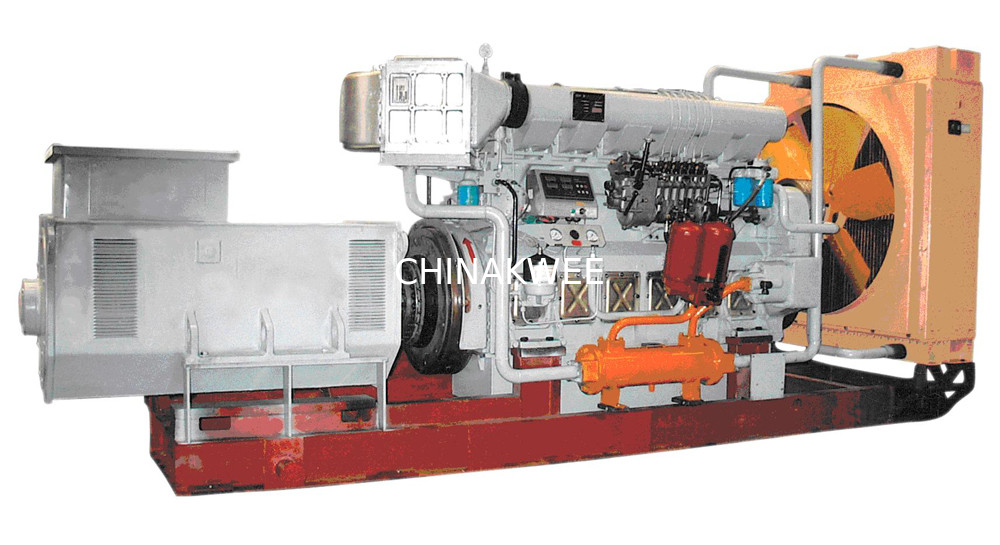

Electrical 200-400KW 50 / 60 Hz 3 Phase Marine Diesel engine(M/E)

Name: Electrical 200-400KW 50 / 60 Hz 3 Phase Marine Diesel engine(M/E)
Brand: KANGWEI ENVIRONMENT ENERGY GROUP
SKU: According to the design and technical demand
Price: Negotiable USD
Availability: InStock

Product Details:

Place of Origin:	WUXI ,CHINA
Brand Name:	ZICHAI
Certification:	CCS,BV,GL
Model Number:	According to the design and technical demand

Detail Information

Place of Origin:

WUXI ,CHINA

Brand Name:

ZICHAI

Certification:

CCS,BV,GL

Model Number:

According to the design and technical demand

Highlight:

High Light

Highlight:

electric generator set

diesel power generator set

Trading Information

Minimum Order Quantity:

1SET

Price:

negotiated

Packaging Details:

CONTAINER ,WOODEN CASE

Delivery Time:

Negotiate

Payment Terms:

T/T, L/C

Supply Ability:

80SETS/M

Product Description

Type	Rated speed (r/min)	rated power (kw)	Rated voltage	Rated frequency
CCFJ200J-W200GF	1000	200	400	50
CCFJ220J-W220GF	1000	220	400	50
CCFJ250J-W250GF	1000	250	400	50
CCFJ280J-W280GF	1000	280	400	50
300GF	1000	300	400	50
CCFJ350J-W350GF	1500	350	400	50
400GF	1500	400	400	50

Main Data

Number of cylinder		4 6 8
Bore	mm	170
Stroke	mm	200
Compression ratio		14.5
Max. combustion pressure	MPa	13.0
Spec. fuel oil consumption	g/(kW·h)	198
Spec. lube oil consumption	g/(kW·h)	1.0
Rated Frequency	H_Z	50/60
Rated Power Factor	cosφ	0.8 Lagging
Phase & Connection		3 phases 4 wires
Exciting Mode		Brushless
Weight	t	5.8~7.9

Rotation direction of crankshaft: Look from the flywheel side to the free side, to turn left is counter-clockwise

Starting method: Air motor or electric motor.
