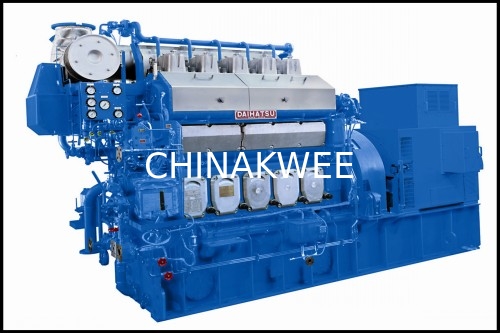

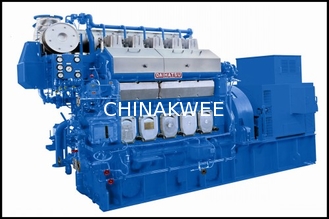

Middle Speed Ship ro Marine Diesel Generating Set ,CCS/NK/DNV Approved
MAN B&W
FOUR STROKE MIDDLE SPEED DIESEL ENGINE
| L16/24 | L27/31 | L27/38 | V28/33D |
| L32/40 | V32/40 | V32/44CR | L58/64 |
| s70ME-C/ME-GI/MC-C | s70ME-C/ME-GI/MC-C | L58/64 | V32/44CR |
| L32/44CR | V32/40 | L32/40 | V28/33D |
| L27/38 | L21/31 | L16/24 |
G300 X320 DIESEL ENGINE
| G300-MIDDLE SPEED MARINE DIESEL | |||
| G16V300 | G8300 | G6300 | G6300 |
| G8300 | G16V300 | ||
Competitive Advantage:
Successfully build technical cooperation with MAN Diesel & Turbo company;
Design and manufacture the lower , middle , highest diesel engine according to the market demand
Good after-sales service team
Quality recognized by CCS , GL, ABS, BV classification society in the world
Main Specification of 1000-2000kW Diesel Generating Sets (1)
|
Generating Set |
Model |
1000GF9 |
1000GF10 |
1000GF11 |
1250GF1A |
1250GF2A |
1250GF3A |
|
|
Rated power |
kW(kVA) |
1000(1250) |
1250(1562.5) |
|||||
|
Rated voltage |
kV |
0.4 |
6.3 |
10.5 |
6.3 |
0.4 |
10.5 |
|
|
Rated current |
A |
1804 |
114.6 |
68.7 |
143.2 |
2255 |
85.9 |
|
|
Rated frequency |
Hz |
50/60 |
||||||
|
Rated speed |
rpm |
500/514 |
||||||
|
Power factor |
|
0.8(lagging) |
||||||
|
Phase & connection |
|
3-phase 4-wire |
3-phase 6-wire |
3-phase 4-wire |
3-phase 6-wire |
|||
|
Overall dimensions L×B×H |
mm |
7264×2300×3465 |
7394×2300×3465 |
|||||
|
Net weight |
t |
32.5 |
34 |
|||||
|
Diesel Engine |
Model |
|
G6300ZD |
G6300ZD21 |
||||
|
Type |
|
Vertical in line, 4-stroke, turbocharged, intercool diesel engine for generating set |
||||||
|
Bore |
mm |
300 |
||||||
|
Stroke |
mm |
380 |
||||||
|
Total displacement |
L |
161 |
||||||
|
Rated power |
kW(Ps) |
1125(1530) |
1470(2000) |
|||||
|
1-hour power |
kW(Ps) |
1237.5(1683) |
1617(2200) |
|||||
|
Rated speed |
rpm |
500/514 |
600 |
|||||
|
Minimum no-load stable speed |
rpm |
200 |
200 |
|||||
|
Specific fuel consumption |
g/kWh(g/Psh) |
204(150) |
208(153) |
|||||
|
Specific lubricating-oil consumption |
g/kWh(g/Psh) |
2.18(1.60) |
2.18(1.60) |
|||||
|
Mean piston speed |
m/s |
6.33 |
7.6 |
|||||
|
Compression ratio |
|
13 |
13 |
|||||
|
Mean effective pressure |
MPa(kgf/cm2) |
1.68(17.1) |
1.83(18.6) |
|||||
|
Maximum explosion pressure |
MPa(kgf/cm2) |
11.77(120) |
13.73(140) |
|||||
|
Opening pressure of cylinder safety valve |
MPa(kgf/cm2) |
14.21(145) |
15.19(155) |
|||||
|
Idle compression pressure |
MPa(kgf/cm2) |
3.14-3.53(32-36) |
3.14-3.53(32-36) |
|||||
|
Turbocharger pressure |
MPa(kgf/cm2) |
0.23-0.255(2.35-2.6) |
0.25-0.28(2.5-2.85) |
|||||
|
Exhaust temperature of cylinder |
℃ |
≤450 |
||||||
|
Exhaust temperature before turbine |
℃ |
≤600 |
||||||
|
Rotation direction |
|
Counterclockwise (viewing from flywheel end to free end) |
||||||
|
Firing order |
|
1-4-2-6-3-5 |
||||||
|
Starting air pressure |
MPa(kgf/cm2) |
1.18-2.94(12-30) |
||||||
|
Overall dimensions |
L×B×H mm |
4731×1863×2900 |
7394×2300×3465 |
|||||
|
Height of hoisting piston |
mm |
2425 (above crankshaft) |
||||||
|
Net weight |
t |
17.5 |
||||||
|
Generator |
Model |
|
TFW500, TFW900 |
TFW900 |
||||
|
Rated power |
kW |
1000 |
1250 |
|||||
|
Rated voltage |
kV |
0.4 |
6.3 |
10.5 |
6.3 |
0.4 |
10.5 |
|
|
Rated current |
A |
1804 |
114.6 |
68.7 |
143.2 |
2255 |
85.9 |
|
|
Rated frequency |
Hz |
50/60 |
||||||
|
Rated speed |
rpm |
500/514 |
||||||
|
Pole number |
|
12/14 |
||||||
Main Specification of 1000-2000kW Diesel Generating Sets (2)
|
Generating Set |
Model |
|
|
|
1250GF1 |
1250GF2 |
1250GF3 |
||
|
Rated power |
kW(kVA) |
|
1250(1562.5) |
||||||
|
Rated voltage |
kV |
|
|
|
6.3 |
0.4 |
10.5 |
||
|
Rated current |
A |
|
|
|
143.2 |
2255 |
85.9 |
||
|
Rated frequency |
Hz |
50/60 |
|||||||
|
Rated speed |
rpm |
500/514 |
|||||||
|
Power factor |
|
0.8(lagging) |
|||||||
|
Phase & connection |
|
|
3-phase 6-wire |
3-phase 4-wire |
3-phase 6-wire |
||||
|
Overall dimensions L×B×H |
mm |
|
8904×2200×3286 |
9004×2360×3286 |
|||||
|
Net weight |
t |
|
38 |
39.7 |
|||||
|
Diesel Engine |
Model |
|
|
G8300ZD |
|||||
|
Type |
|
Vertical in line, 4-stroke, turbocharged, intercool diesel engine for generating set |
|||||||
|
Bore |
mm |
300 |
|||||||
|
Stroke |
mm |
380 |
|||||||
|
Total displacement |
L |
|
215 |
||||||
|
Rated power |
kW(Ps) |
|
1500(2040) |
||||||
|
1-hour power |
kW(Ps) |
|
1650(2244) |
||||||
|
Rated speed |
rpm |
500/514 |
|||||||
|
Minimum no-load stable speed |
rpm |
200 |
|||||||
|
Specific fuel consumption |
g/kWh(g/Psh) |
204(150) |
|||||||
|
Specific lubricating-oil consumption |
g/kWh(g/Psh) |
2.18(1.60) |
|||||||
|
Mean piston speed |
m/s |
6.33 |
|||||||
|
Compression ratio |
|
13 |
|||||||
|
Mean effective pressure |
MPa(kgf/cm2) |
1.68(17.1) |
|||||||
|
Maximum explosion pressure |
MPa(kgf/cm2) |
11.77(120) |
|||||||
|
Opening pressure of cylinder safety valve |
MPa(kgf/cm2) |
14.21(145) |
|||||||
|
Idle compression pressure |
MPa(kgf/cm2) |
3.14-3.53(32-36) |
|||||||
|
Turbocharger pressure |
MPa(kgf/cm2) |
0.23-0.255(2.35-2.6) |
|||||||
|
Exhaust temperature of cylinder |
℃ |
≤450 |
|||||||
|
Exhaust temperature before turbine |
℃ |
≤600 |
|||||||
|
Rotation direction |
|
Counterclockwise (viewing from flywheel end to free end) |
|||||||
|
Firing order |
|
|
1-6-2-4-8-3-7-5 |
||||||
|
Starting air pressure |
MPa(kgf/cm2) |
1.18-2.94(12-30) |
|||||||
|
Overall dimensions |
L×B×H mm |
|
5768×1670×2917 |
||||||
|
Height of hoisting piston |
mm |
2425 (above crankshaft) |
|||||||
|
Net weight |
t |
|
21 |
||||||
|
Generator |
Model |
|
|
TFW900 |
|||||
|
Rated power |
kW |
|
1250 |
||||||
|
Rated voltage |
kV |
|
|
|
6.3 |
0.4 |
10.5 |
||
|
Rated current |
A |
|
|
|
143.2 |
2255 |
85.9 |
||
|
Rated frequency |
Hz |
50/60 |
|||||||
|
Rated speed |
rpm |
500/514 |
|||||||
|
Pole number |
|
12/14 |
|||||||
Main Specification of 1000-1600kW Diesel Generating Sets (3)
|
Generating Set |
Model |
1600GF1 |
1600GF2 |
1600GF3 |
2000GF1 |
2000GF2 |
2000GF3 |
|
|
Rated power |
kW(kVA) |
1600(2000) |
2000(2500) |
|||||
|
Rated voltage |
kV |
6.3 |
0.4 |
10.5 |
6.3 |
0.4 |
10.5 |
|
|
Rated current |
A |
183 |
2886.7 |
110 |
229 |
3608.6 |
137.5 |
|
|
Rated frequency |
Hz |
50/60 |
||||||
|
Rated speed |
rpm |
500/514 |
600 |
|||||
|
Power factor |
|
0.8(lagging) |
||||||
|
Phase & connection |
|
3-phase 6-wire |
3-phase 4-wire |
3-phase 6-wire |
3-phase 4-wire |
3-phase 6-wire |
||
|
Overall dimensions L×B×H |
mm |
9124×2360×3286 |
9263×2565×3286 |
|||||
|
Net weight |
t |
40 |
45 |
|||||
|
Diesel Engine |
Model |
|
G8300ZD13 |
G8300ZD21 |
||||
|
Type |
|
Vertical in line, 4-stroke, turbocharged, intercool diesel engine for generating set |
||||||
|
Bore |
mm |
300 |
||||||
|
Stroke |
mm |
380 |
||||||
|
Total displacement |
L |
215 |
||||||
|
Rated power |
kW(Ps) |
1765(2400) |
2206(3000) |
|||||
|
1-hour power |
kW(Ps) |
1942(2640) |
2426(3300) |
|||||
|
Rated speed |
rpm |
500/514 |
600 |
|||||
|
Minimum no-load stable speed |
rpm |
200 |
200 |
|||||
|
Specific fuel consumption |
g/kWh(g/Psh) |
204(150) |
208(153) |
|||||
|
Specific lubricating-oil consumption |
g/kWh(g/Psh) |
2.18(1.60) |
2.18(1.60) |
|||||
|
Mean piston speed |
m/s |
6.33 |
7.6 |
|||||
|
Compression ratio |
|
13 |
13 |
|||||
|
Mean effective pressure |
MPa(kgf/cm2) |
2(20.4) |
2.05(20.9) |
|||||
|
Maximum explosion pressure |
MPa(kgf/cm2) |
12.75(130) |
13.73(140) |
|||||
|
Opening pressure of cylinder safety valve |
MPa(kgf/cm2) |
15.19(155) |
15.19(155) |
|||||
|
Idle compression pressure |
MPa(kgf/cm2) |
3.14-3.53(32-36) |
||||||
|
Turbocharger pressure |
MPa(kgf/cm2) |
0.23-0.255(2.35-2.6) |
||||||
|
Exhaust temperature of cylinder |
℃ |
≤450 |
||||||
|
Exhaust temperature before turbine |
℃ |
≤600 |
||||||
|
Rotation direction |
|
Counterclockwise (viewing from flywheel end to free end) |
||||||
|
Firing order |
|
1-6-2-4-8-3-7-5 |
||||||
|
Starting air pressure |
MPa(kgf/cm2) |
1.18-2.94(12-30) |
||||||
|
Overall dimensions |
L×B×H mm |
5768×1670×2917 |
5818×1670×2917 |
|||||
|
Height of hoisting piston |
mm |
2425 (above crankshaft) |
||||||
|
Net weight |
t |
21 |
24 |
|||||
|
Generator |
Model |
|
TFW900 |
|||||
|
Rated power |
kW |
1600 |
2000 |
|||||
|
Rated voltage |
kV |
6.3 |
0.4 |
10.5 |
6.3 |
0.4 |
10.5 |
|
|
Rated current |
A |
183 |
2886.7 |
110 |
229 |
3608.6 |
137.5 |
|
|
Rated frequency |
Hz |
50/60 |
||||||
|
Rated speed |
rpm |
500/514 |
600 |
|||||
|
Pole number |
|
12/14 |
10/12 |
|||||
Technical specifications of 2500-3000kW diesel generating sets (1)
|
|
Model |
2500GF1 |
2500GF3 |
3000GF1 |
3000GF3 |
|
|---|---|---|---|---|---|---|
|
Gen-set |
Rated output |
kW(kVA) |
2500 (3125) |
3000 (3750) |
||
|
Rated voltage |
kV |
6.3 |
10.5 |
6.3 |
10.5 |
|
|
Rated current |
A |
286.4 |
171.8 |
344 |
206 |
|
|
Rated frequency |
Hz |
50/60 |
||||
|
Rated speed |
rpm |
500/514 |
||||
|
Power factor |
|
0.8 (lagging) |
||||
|
Phases and connection |
|
Three phases, six wires |
||||
|
Overall dimensions |
l×w×h, mm |
10355×2768×3420 |
10410×2768×3420 |
|||
|
Net weight |
t |
60 |
61.5 |
|||
|
diesel |
Model |
|
G16V300ZD |
G16V300ZD1 |
||
|
Type |
|
V model, 4 stroke, turbocharged, intercooled, for generating application |
||||
|
Intersection angle |
|
45° |
||||
|
Cylinder bore |
mm |
300 |
||||
|
Piston stroke |
mm |
380 |
||||
|
Total displacement |
L |
430 |
||||
|
Rated output |
kW |
2750 |
3300 |
|||
|
1h power |
kW |
3025 |
3630 |
|||
|
Rated speed |
rpm |
500/514 |
||||
|
Min. steady speed at zero load |
rpm |
200 |
||||
|
Fuel consumption |
g/kWh(g/Psh) |
204(150) |
||||
|
Oil consumption |
g/kWh(g/Psh) |
≤2.18 (1.6) |
||||
|
Mean piston speed |
m/s |
6.33 |
||||
|
Compression ratio |
|
13 |
||||
|
Mean effective pressure |
MPa(kgf/cm2) |
1.54(15.7) |
1.85 (18.8) |
|||
|
Max. explosion pressure |
MPa(kgf/cm2) |
12.75 (130) |
||||
|
Boosting pressure |
MPa(kgf/cm2) |
0.255-0.275 (2.6-2.8) |
||||
|
Exhaust temperature |
℃ |
≤450℃ |
||||
|
Gas temperature before turbine |
℃ |
≤600℃ |
||||
|
Rotation direction |
|
Counter-clockwise (viewing from flywheel end to free end) |
||||
|
Ignition order |
|
Right side: 1-6-2-4-8-3-7-5 Left side: 8-3-7-5-1-6-2-4 |
||||
|
Air pressure for start |
MPa(kgf/cm2) |
1.18-2.94 (12-30) |
||||
|
Overall dimensions |
l×w×h, mm |
7071×2624×3110 |
||||
|
Height of space for lifting the cylinder liner |
mm |
2425 above the crankshaft |
||||
|
Net weight |
t |
42 |
||||
|
Generator |
Model |
|
TFW950 |
|||
|
Rated output |
kW |
2500 |
3150 |
|||
|
Rated voltage |
kV |
6.3 |
10.5 |
6.3 |
10.5 |
|
|
Rated current |
A |
286.4 |
171.8 |
344 |
206 |
|
|
Rated frequency |
Hz |
50/60 |
||||
|
Rated speed |
rpm |
500/514 |
||||
|
Number of poles |
|
12/14 |
||||
Technical specifications of 2500-3000kW diesel generating sets (2)
|
Gen-set |
Model |
2500GF1A |
2500GF3A |
|
|
Rated output |
2500 (3125) |
|
||
|
Rated voltage |
6.3 |
10.5 |
10.5 |
|
|
Rated current |
286.4 |
171.8 |
343 |
|
|
Rated frequency |
Hz |
50/60 |
||
|
Rated speed |
rpm |
600 |
||
|
Power factor |
|
0.8(lagging) |
||
|
Phases and connection |
|
Three phases, six wires |
||
|
Overall dimensions |
l×w×h, mm |
10355×2768×3420 |
||
|
Net weight |
t |
55 |
||
|
diesel |
Model |
|
X8320ZD |
|
|
Type |
|
L model, 4 stroke, turbocharged, intercooled, for generating application |
||
|
Intersection angle |
|
|
||
|
Cylinder bore |
mm |
320 |
||
|
Piston stroke |
mm |
380 |
||
|
Total displacement |
L |
245 |
||
|
Rated output |
kW |
2794 |
||
|
1h power |
kW |
3073 |
||
|
Rated speed |
rpm |
600 |
||
|
Min. steady speed at zero load |
rpm |
232 |
||
|
Fuel consumption |
g/kWh |
196 |
||
|
Oil consumption |
g/kWh |
1.36 |
||
|
Mean piston speed |
m/s |
7.35 |
||
|
Compression ratio |
|
12.5 |
||
|
Mean effective pressure |
MPa(kgf/cm2) |
2.37(23.25) |
||
|
Max. explosion pressure |
MPa(kgf/cm2) |
15.5(152) |
||
|
Boosting pressure |
MPa(kgf/cm2) |
0.33-0.34(3.24-3.34) |
||
|
Exhaust temperature |
℃ |
≤450℃ |
||
|
Gas temperature before turbine |
℃ |
≤600℃ |
||
|
Rotation direction |
|
Counter-clockwise (viewing from flywheel end to free end) |
||
|
Ignition order |
|
1-6-2-4-8-3-7-5 |
||
|
Air pressure for start |
MPa(kgf/cm2) |
1.18-2.94(12-30) |
||
|
Overall dimensions |
l×w×h, mm |
|
||
|
Height of space for lifting the cylinder liner |
mm |
2425 above the crankshaft |
||
|
Net weight |
t |
35 |
||
|
Generator |
Model |
|
TFW950 |
|
|
Rated output |
kW |
2500 |
||
|
Rated voltage |
kV |
6.3 |
10.5 |
|
|
Rated current |
A |
286.4 |
171.8 |
|
|
Rated frequency |
Hz |
50/60 |
||
|
Rated speed |
rpm |
600 |
||
|
Number of poles |
|
10/12 |
||
Technical specifications of 3600-4000kW diesel generating sets
|
|
Model |
3600GF1 |
3600GF3 |
4000GF1 |
4000GF3 |
|
|---|---|---|---|---|---|---|
|
Gen-set |
Rated output |
kW(kVA) |
3600 (4500) |
4000 (5000) |
||
|
Rated voltage |
kV |
6.3 |
10.5 |
6.3 |
10.5 |
|
|
Rated current |
A |
412.4 |
247.4 |
458.2 |
275 |
|
|
Rated frequency |
Hz |
50/60 |
||||
|
Rated speed |
rpm |
600 |
||||
|
Power factor |
|
0.8 (lagging) |
||||
|
Phases and connection |
|
Three phases, six wires |
||||
|
Overall dimensions |
l×w×h, mm |
10957×2768×3420 |
10957×2768×3420 |
|||
|
Net weight |
t |
65 |
65 |
|||
|
diesel |
Model |
|
G16V300ZD4 |
G16V300ZD5 |
||
|
Type |
|
V model, 4 stroke, turbocharged, intercooled, for generating application |
||||
|
Intersection angle |
|
45° |
||||
|
Cylinder bore |
mm |
300 |
||||
|
Piston stroke |
mm |
380 |
||||
|
Total displacement |
L |
430 |
||||
|
Rated output |
kW |
3960 |
4412 |
|||
|
1h power |
kW |
4356 |
4800 |
|||
|
Rated speed |
rpm |
600 |
||||
|
Min. steady speed at zero load |
rpm |
200 |
||||
|
Fuel consumption |
g/kWh(g/Psh) |
204(150) |
||||
|
Oil consumption |
g/kWh(g/Psh) |
≤2.18 (1.6) |
||||
|
Mean piston speed |
m/s |
7.6 |
||||
|
Compression ratio |
|
13 |
||||
|
Mean effective pressure |
MPa(kgf/cm2) |
1.84(18.8) |
2.05 (20.95) |
|||
|
Max. explosion pressure |
MPa(kgf/cm2) |
13.73 (140) |
||||
|
Boosting pressure |
MPa(kgf/cm2) |
0.255-0.275 (2.6-2.8) |
||||
|
Exhaust temperature |
℃ |
≤450℃ |
||||
|
Gas temperature before turbine |
℃ |
≤600℃ |
||||
|
Rotation direction |
|
Counter-clockwise (viewing from flywheel end to free end) |
||||
|
Ignition order |
|
Right side: 1-6-2-4-8-3-7-5 Left side: 8-3-7-5-1-6-2-4 |
||||
|
Air pressure for start |
MPa(kgf/cm2) |
1.18-2.94 (12-30) |
||||
|
Overall dimensions |
l×w×h, mm |
7316×2624×3110 |
||||
|
Height of space for lifting the cylinder liner |
mm |
2425 above the crankshaft |
||||
|
Net weight |
t |
42.5 |
||||
|
Generator |
Model |
|
TFW950 |
|||
|
Rated output |
kW |
3600 |
4000 |
|||
|
Rated voltage |
kV |
6.3 |
10.5 |
6.3 |
10.5 |
|
|
Rated current |
A |
412.4 |
247.4 |
458.2 |
275 |
|
|
Rated frequency |
Hz |
50/60 |
||||
|
Rated speed |
rpm |
600 |
||||
|
Number of poles |
|
10/12 |
||||
Technical specifications of 5000kW diesel generating sets
|
Gen-set |
model |
5000GF1 |
5000GF3 |
|
|
Rated output |
kW(kVA) |
5000(6250) |
||
|
Rated voltage |
kV |
6.3 |
10.5 |
|
|
Rated current |
A |
573 |
343 |
|
|
Rated frequency |
Hz |
50/60 |
||
|
Rated speed |
rpm |
600 |
||
|
Power factor |
|
0.8(lagging) |
||
|
Phases and connection |
|
Three phases, six wires |
||
|
Overall dimensions |
l×w×h, mm |
11950×3450×3480 |
||
|
Net weight |
t |
105 |
||
|
diesel |
Model |
|
X16V320ZD |
|
|
Type |
|
V model, 4 stroke, turbocharged, intercooled, for generating application |
||
|
Intersection angle |
|
45° |
||
|
Cylinder bore |
mm |
320 |
||
|
Piston stroke |
mm |
380 |
||
|
Total displacement |
L |
489 |
||
|
Rated output |
kW |
5588 |
||
|
1h power |
kW |
6146 |
||
|
Rated speed |
rpm |
600 |
||
|
Min. steady speed at zero load |
rpm |
232 |
||
|
Fuel consumption |
g/kWh |
196 |
||
|
Oil consumption |
g/kWh |
1.36 |
||
|
Mean piston speed |
m/s |
7.35 |
||
|
Compression ratio |
|
12.5 |
||
|
Mean effective pressure |
MPa(kgf/cm2) |
2.37(23.25) |
||
|
Max. explosion pressure |
MPa(kgf/cm2) |
15.5(152) |
||
|
Boosting pressure |
MPa(kgf/cm2) |
0.33-0.34(3.24-3.34) |
||
|
Exhaust temperature |
℃ |
≤450℃ |
||
|
Gas temperature before turbine |
℃ |
≤600℃ |
||
|
Rotation direction |
|
Counter-clockwise (viewing from flywheel end to free end) |
||
|
Ignition order |
|
Right side: 1-6-2-4-8-3-7-5 Left side: 8-3-7-5-1-6-2-4 |
||
|
Air pressure for start |
MPa(kgf/cm2) |
1.18-2.94(12-30) |
||
|
Overall dimensions |
l×w×h, mm |
7570×3240×3480 |
||
|
Height of space for lifting the cylinder liner |
mm |
2425 above the crankshaft |
||
|
Net weight |
t |
65 |
||
|
Generator |
Model |
|
TFW950 |
|
|
Rated output |
kW |
5000 |
||
|
Rated voltage |
kV |
6.3 |
10.5 |
|
|
Rated current |
A |
573 |
343 |
|
|
Rated frequency |
Hz |
50/60 |
||
|
Rated speed |
rpm |
600 |
||
|
Number of poles |
|
10/12 |
||
| Sales office:NO.8, YINGHUI ROAD, MASHAN TECHNOLOGICAL INDUSTRY PARK WUXI, JIANGSU PROVINCE, CHINA | |
| +86--13812510495 | |
| chinakwee@126.com | |
