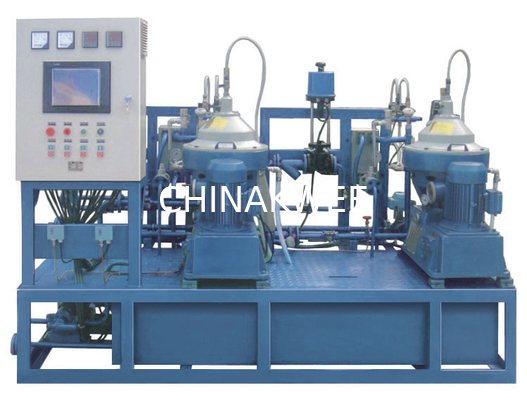

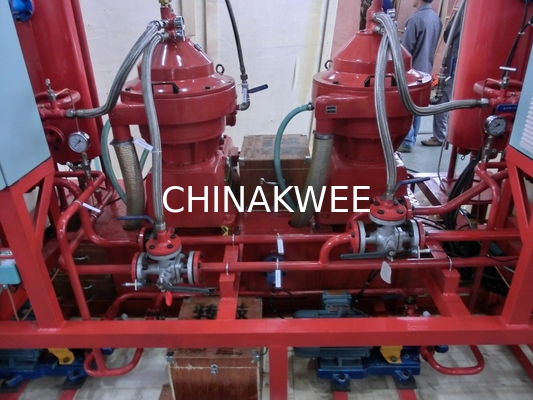

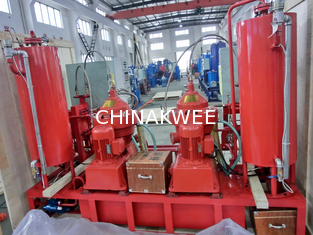

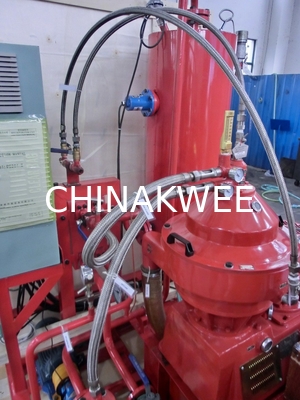

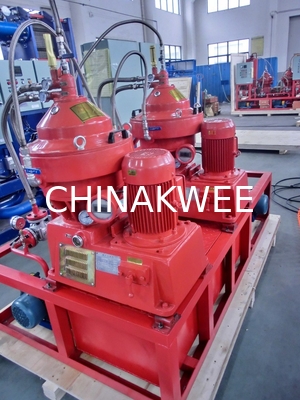

3PH / 380V / 50Hz Oil centrifugal Separator Unit (Export to the South Africa)
1.Application
1.1 Based on the centrifugal separator, KANGWEI fuel oiltreatment systems are designed to protect your engine
and/or gas turbine equipment. They have proven their efficiency and reliability in engine rooms worldwide for
decades. Installed between the bunker tank and the day tank, KANGWEI fuel oil separators protect diesel engines
and gas turbines by removing water, water soluble salts,and solid particles from the fuel.
1.2 For heavier fuel and crude oils,we supplies a wide range of self-cleaning purifier systems. These are available
as separate modules and include pre-heater, starter and control panel.
2.Features and benefits
• Simple, compact and robust design
• Highest separation efficiency in removing solids and water
• No pre-filtration necessary
• Environmentally friendly sludge disposal (no cartridges)
• Automatic, unattended operation
• Easy maintenance
• Low operating cost
• Proven reliability and long lifespan
• Reliable process for maximum performance
3. Designing including as below
• Feed pump with electric motor
• Self-cleaning centrifugal separator with electric motor
• Control panel with local operator device
• Atmospheric sludge tank complete with sludge pump
• Instrument air distribution system
• Wired and piped to skid limit
• Module base frame with drip pan, lifting lugs and earthing
• Suitable offshore painting
• Tagging and marking
• Factory Acceptance Test (FAT)
• Documentation
4. One module include one ,two or three separator which designed according to the technical demand
