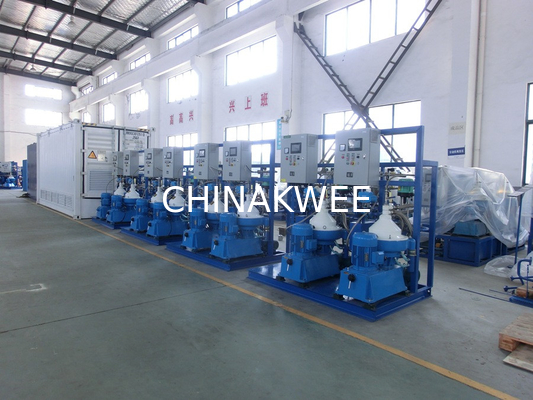

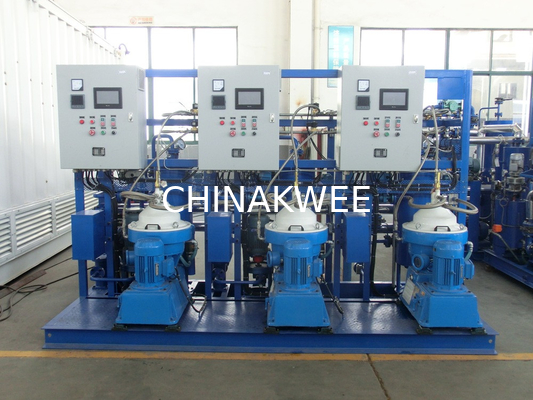

Product Details:
Payment & Shipping Terms:
|
Main Materials: | Stainless Steel | Application: | HFO MDO Power Plant |
---|---|---|---|
Control: | Electrical Box By PLC | Voltage: | 230,380,440,460 |
Capacity: | 9000L/H | Discharging Type: | Variable Discharging |
Motor Power: | 5.5*3kw | Size: | 3000*1800*2000mm |
Heating Source: | Steam Exchanger Or Electrical | ||
High Light: | oil water separator filter,fuel filter water separator |
Separator unit model parameters | |||||||
Model | SM203-S(O) | SS(A)203-S(O) | SS(A)204-S(O) | SS(A)405-S(O) | SS(A)309-S(O) | DS(A)203-S(O) | |
Item | |||||||
Separated volume | Rated value | 2000 | 1500 | 2000 | 3000 | 6000 | 1500 |
(L/H) | 0# Diesel oil | 2200 | 1600 | 2200 | 3500 | 6500 | 1600 |
30# SAE LO. | 1200 | 800 | 1200 | 1800 | 3600 | 800 | |
180Cst/50℃HFO | / | 700 | 1100 | 1600 | 3500 | 700 | |
Power(KW) | Separator | 2.2 | 1.5 | 3 | 5.5 | 11 | 1.5x2 |
Oil feed pump | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 | 1.5(1.5x2) | |
E-heating | / | / | / | / | / | / | |
Others | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | |
Slag discharge way | Manual Discharge | Auto slge / Auto partial discharge | |||||
Heating way | Steam 0.45~0.7MPa / Conduction oil 170~210℃ | ||||||
Control way | Relay | Relay / by PLC auto control | |||||
Machine weight | 780 | 760 | 785 | 980 | 1830 | 1300 | |
Outline dimension(mm) | Length | 1150 | 1150 | 1150 | 1300 | 1700 | 2000(2200) |
Width | 1150 | 1150 | 1150 | 1300/ | 1850 | 1200 | |
Height | 1700 | 1700 | 1700 | 1780 | 2070 | 1700 | |
Interface dimension | Fuel oil inlet/ | DN25/ | DN25/ | DN25/ | DN40/ | DN40/ | DN25/ |
outlet/ | DN25/ | DN20/ | DN25/ | DN32/ | DN40/ | DN25/ | |
return oil outlet | DN25 | DN20 | DN25 | DN32 | DN40 | DN25 | |
Medium inlet | DN20(DN25) | DN20(DN25) | DN20(DN25) | DN25 | DN25 | DN20(DN25) | |
Medium outlet | DN20(DN25) | DN20(DN25) | DN20(DN25) | DN20(DN25) | DN25 | DN20(DN25) | |
Control water inlet | G1/2” | G1/2” | G1/2” | G1/2” | G1/2” | G1/2” | |
Incoming cable | CEFR4x2.5 | CEFR4x2.5 | CEFR4x2.5 | CEFR4x4 | CEFR4x6 | CEFR4x4 | |
Alarm output cable | CEFR2x0.75 or CEFR10x0.75 | ||||||
Power supply | 3φ-380V/50Hz or 3φ-440V/60Hz | ||||||
Separator unit model parameters | |||||||
Model | DS(A)204-S(O) | DS(A)405-S(O) | SS(A)203-E | SS(A)204-E | DS(A)203-E | DS(A)204-E | |
Item | |||||||
Separated volume | Rated value | 2000 | 3000 | 1500 | 2000 | 1500 | 2000 |
(L/H) | 0# Diesel oil | 2200 | 3500 | 1600 | 2200 | 1600 | 2200 |
30# SAE LO. | 1200 | 1800 | 800 | 1200 | 800 | 1200 | |
180Cst/50℃HFO | 1100 | 1600 | 700 | 1100 | 700 | 1100 | |
Power(KW) | Separator | 3 x2 | 5.5 x2 | 1.5 | 3 | 1.5x2 | 3 x2 |
Oil feed pump | 1.5(1.5x2) | 1.5(1.5x2) | 1.5 | 1.5 | 1.5(1.5x2) | 1.5(1.5x2) | |
E-heating | / | / | 3x3 | 6x3 | 5x3(5x3x2) | 8x3(8x3x2) | |
Others | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | |
Slag discharge way | Auto slge / Auto partial discharge | ||||||
Heating way | Steam 0.45~0.7MPa /Conduction oil 170~210℃ | By electricity | |||||
Control way | Relay/by PLC auto control | ||||||
Machine weight | 1390 | 1715 | 800 | 835 | 1550 | 1620 | |
Outline dimension(mm) | Length | 2000(2200) | 2200 | 1150 | 1150 | 2200 | 2200 |
Width | 1200 | 1250 | 1150 | 1150 | 1200 | 1200 | |
Height | 1700 | 1780 | 1700 | 1700 | 1700 | 1700 | |
Interface dimension | Fuel oil inlet/ | DN32/ | DN40/ | DN25/ | DN25/ | DN25/ | DN32/ |
outlet/ | DN32/ | DN40/ | DN20/ | DN25/ | DN25/ | DN32/ DN32 | |
return oil outlet | DN32 | DN40 | DN20 | DN25 | DN25 | ||
Medium inlet | DN20(DN25) | DN25 | / | / | / | / | |
Medium outlet | DN20(DN25) | DN20(DN25) | / | / | / | / | |
Control water inlet | G1/2” | G1/2” | G1/2” | G1/2” | G1/2” | G1/2” | |
Incoming cable | CEFR4x4 | CEFR4x6 | CEFR4x6 | CEFR4x10 | CEFR4x16 | CEFR4x25 | |
Alarm output cable | CEFR2x0.75 or CEFR10x0.76 | ||||||
Power supply | 3φ-380V/50Hz or 3φ-440V/61Hz | ||||||
Oil Separator unit Parameter Table | ||||||
Model | KYDR203CD-21 | KYDB203DD-21 | KYDB204DD-21 | KYDB405SD-21 | KYDB309SD-21 | KYDB513SD-21 |
Item | ||||||
Rated Separater Volume |
2000 | 1500 | 2000 | 3000 | 6000 | 10000 |
Drum Rotating Speed (r/min) |
9000 | 9400 | 9300 | 9100 | 5800 | 6200 |
Separating Factors(g) | 12450 | 9037 | 9910 | 12034 | 7050 | 9131 |
Engine Power(Kw) | 2.2 | 1.5 | 3 | 5.5 | 11 | 15 |
Drive Way | High-speed Strap | |||||
Start/Stop time |
3~5min/10~15min | 5~8 min/15~20min | ||||
Sludge Discharge Way |
Manual Discharge | Auto Valve-circled Partial Discharge | ||||
Dirty Oil Input Way | Independent External Pump | |||||
Dirty Oil Input Pressure |
~ 0.1 | |||||
Purified Oil Output Way | Concentric Pump | |||||
Purified Oil output Pressure (MPa) |
0.2-0.3 | |||||
Controlled-water Pre./Tem.(MPa)/(℃) |
0.02~0.7 (No requirement) |
0.2-0.3 / 85-95 | ||||
Net Weight (Kg) |
268 | 250 | 270 | 400 | 900 | 1100 |
Outline Dimension |
720x450x850 | 710x420x840 | 720x450x850 | 840x510x930 | 1220x800x1300 | 1300x900x1450 |
Power Supply (V/Hz) |
3ф-380V/50Hz, 3ф-440V/60Hz |
